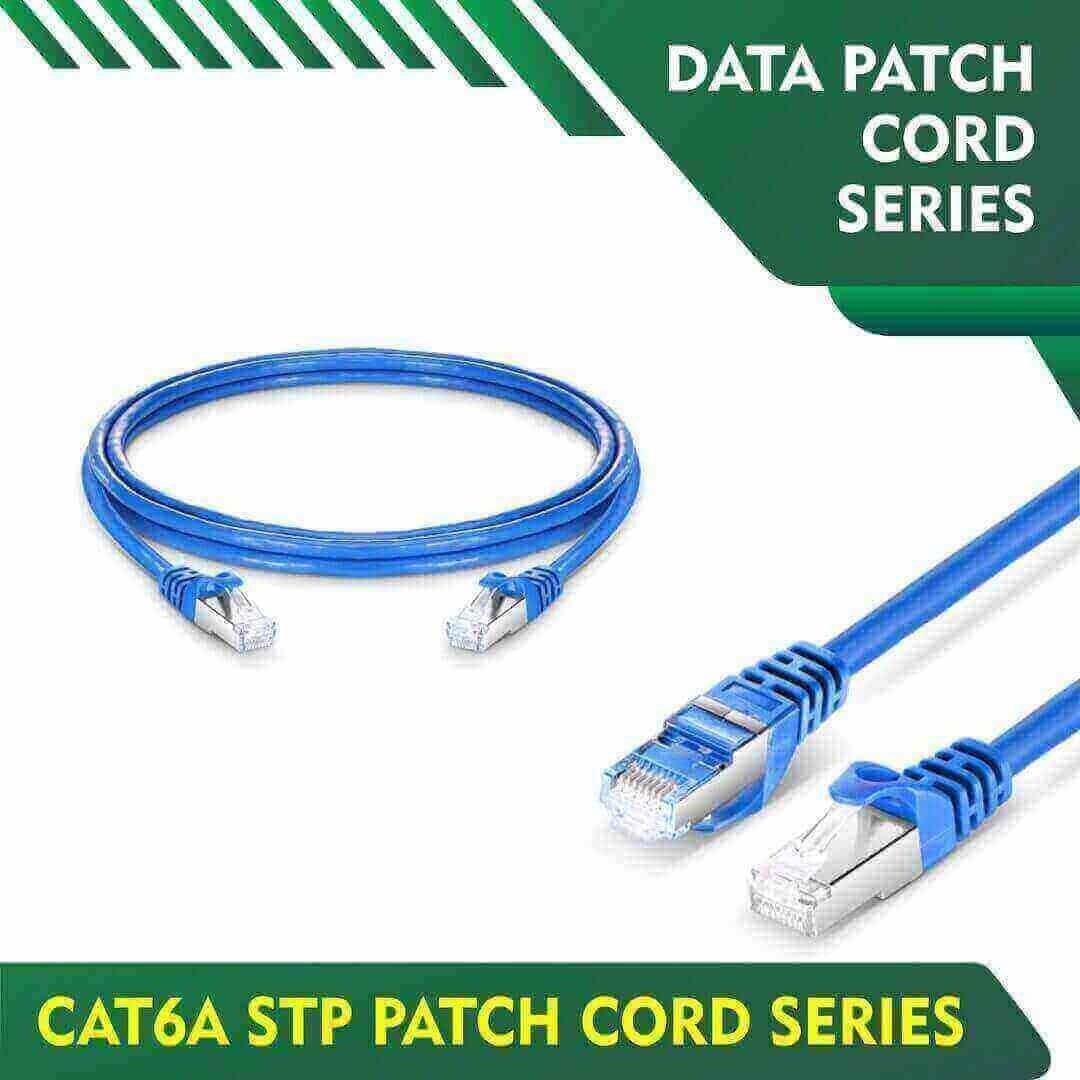

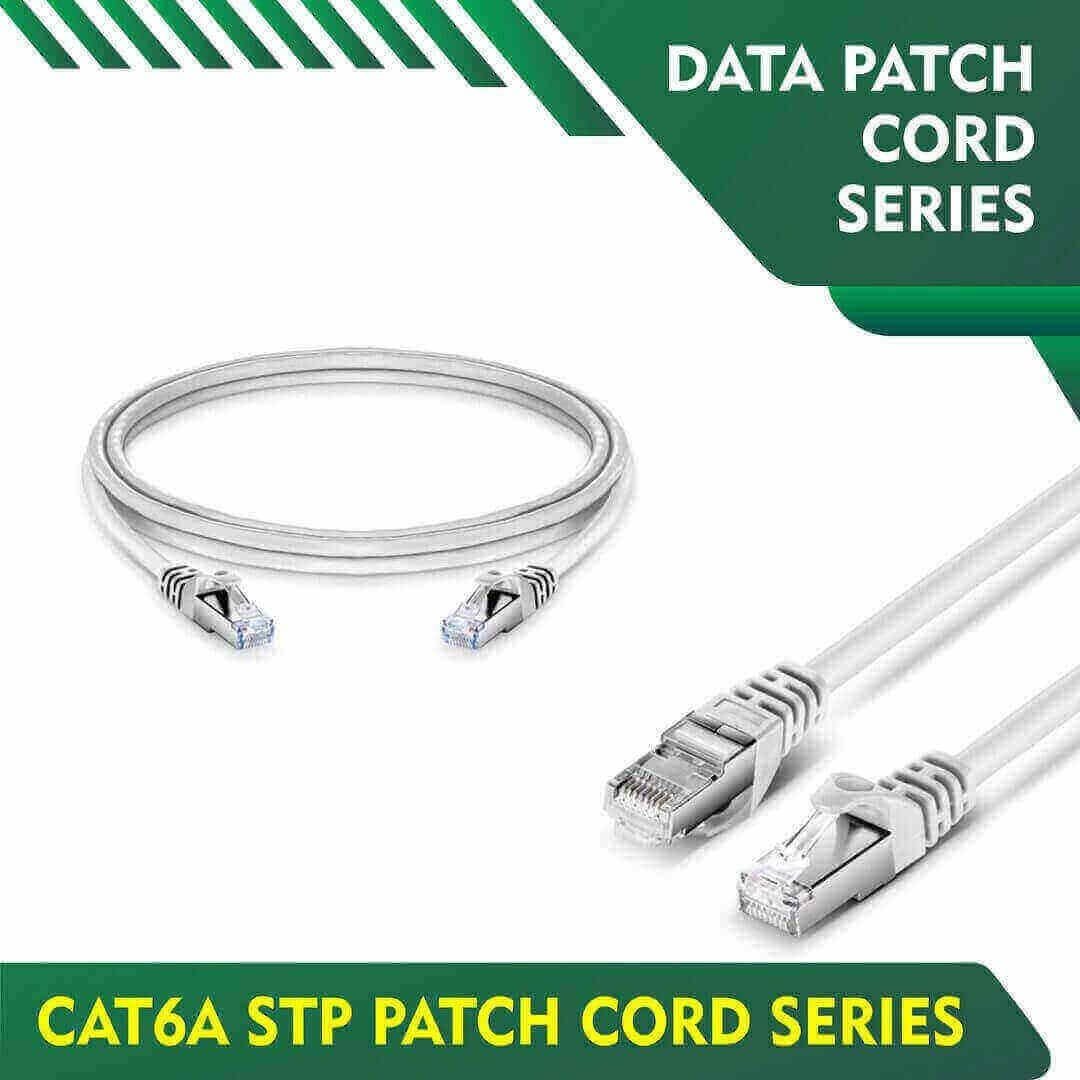

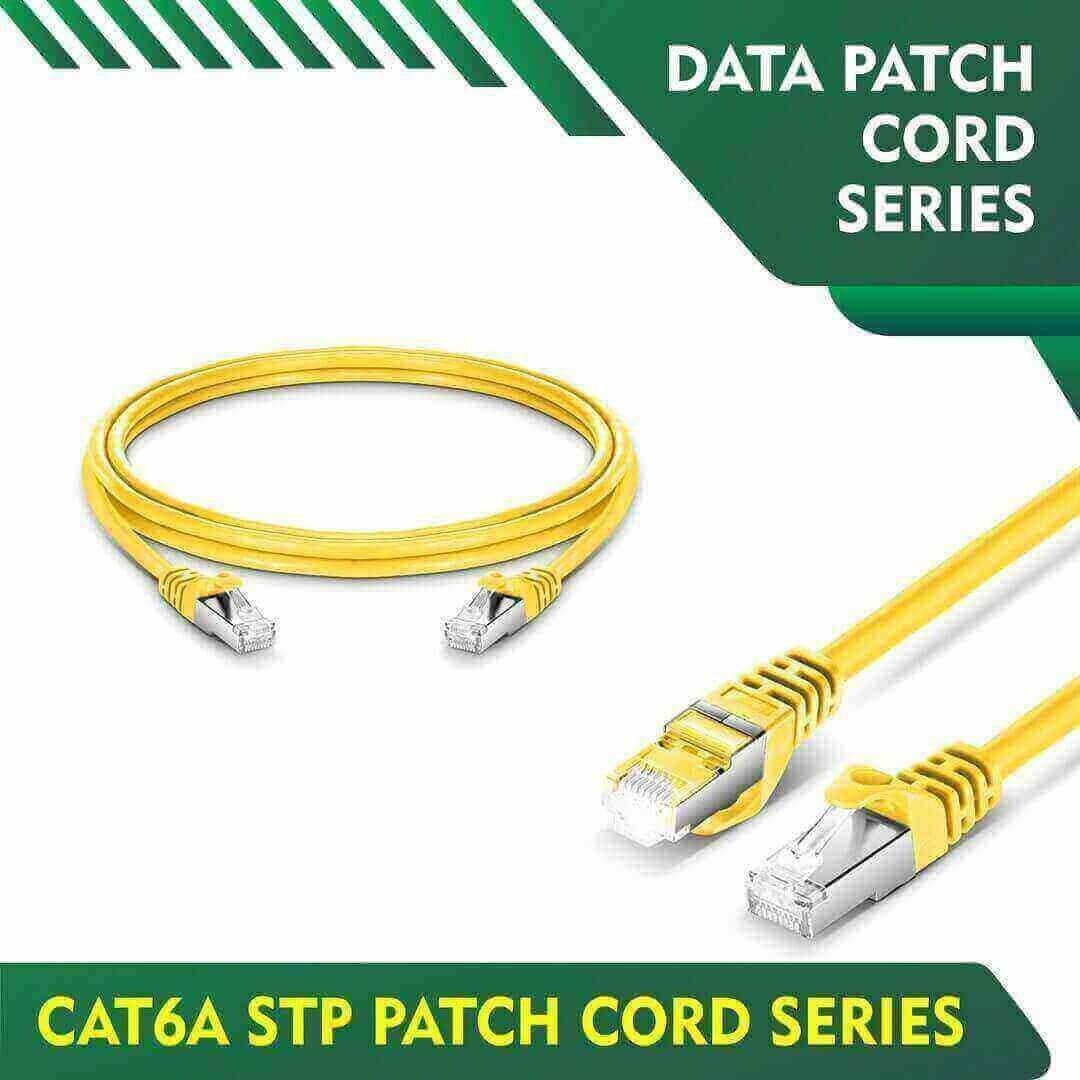

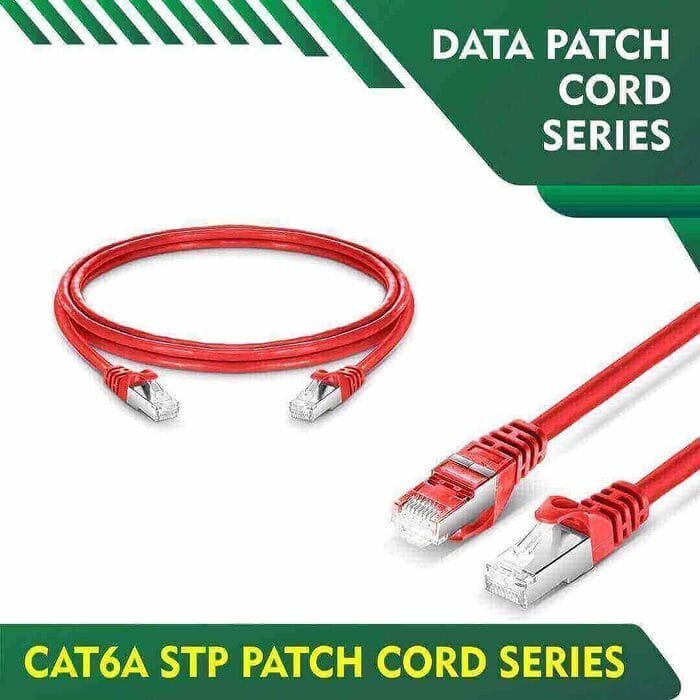

1m 28 awg cat 6a utp internet patch cord

TMT GLOBAL cat 6a utp patch cord 1m 28awg

TMT Global 1m 28 awg cat 6a utp internet patch cord are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.cat 6a utp patch cord 1m 28awg

APPLICATION

• 10BASE-T, 100BASE-TX Fast Ethernet,
• 1000BASE-T (IEEE802.3
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN
• 155/ 622 Mbps ATM
• Power over Ethernet (POE)

GENERAL SPECIFICATION
4 Pairs shielded Twisted Pair (UTP) Cable
Gold Plated: 30U”
Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color
Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length
Contact blade: Phosphor Bronze
Insulation Material: HD-PE-PVC-LSZH
Jacket Material: PVC UL94V-0

PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
