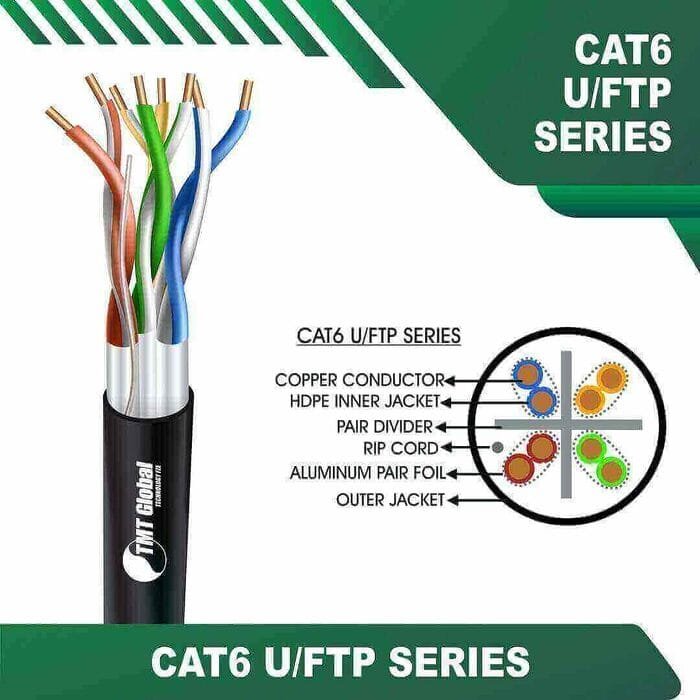

Cat6 23awg U FTP Ethernet Cable 4 twisted pair 305m

Rated 5.00 out of 5 based on 1 customer rating

د.إ260.00

Standards: ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -E)

General Specification:

• Conductor: TMT Copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: PAIR Aluminum
• Outer Jacket: LSZH
• Jacket Color: Blue/Black/Grey/Violet/Orange
• Packing: 305m / Wooden /Plastic reel
• Model No: TMT-4045
• Item Code: 6X336MLB

0 People watching this product now!

TMT GLOBAL Cat6 23awg U FTP Ethernet Cable 4 twisted pair 305m

The TMT GLOBAL Cat6 23awg 4 twisted pair U-FTP Ethernet Cable 305m, available in a generous 305-meter length, is engineered to provide exceptional performance and reliability for your networking needs. This cable meets and exceeds industry standards including IEC 60332-1-2, EN 50173-1:2011, and ISO/IEC11801:2011, ensuring it is safe, compliant, and built to last. With its 4 twisted pairs, this U-FTP Ethernet cable minimizes crosstalk and interference, making it ideal for high-speed data transmission in both residential and commercial settings. Whether you’re setting up a new office network or upgrading your home system, the TMT GLOBAL Cat6 cable delivers the high performance required for structured cabling systems, supporting various applications including VoIP, video streaming, and online gaming.

APPLICATION

10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)

PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance Unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
By Fahad Cables Industry FZE
