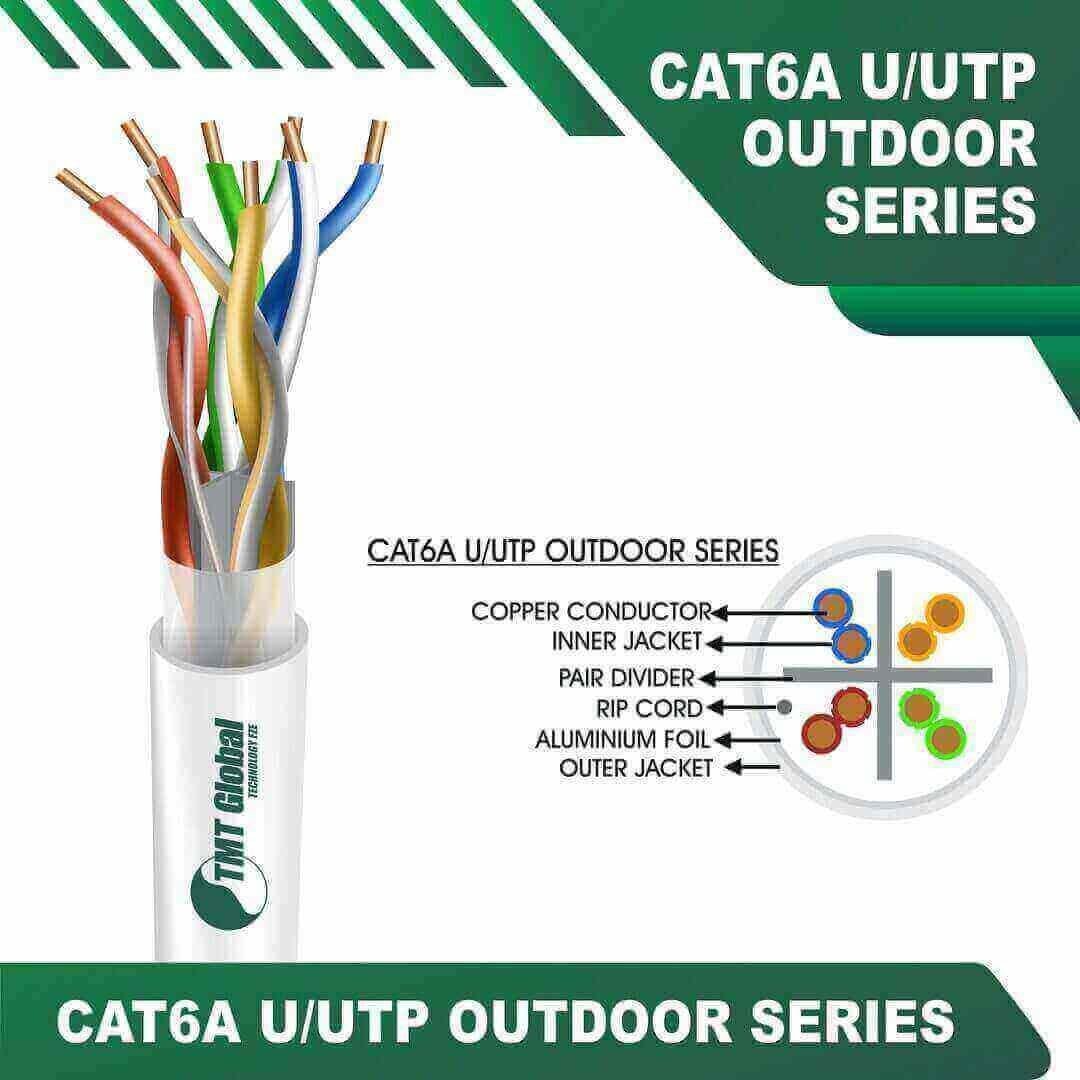

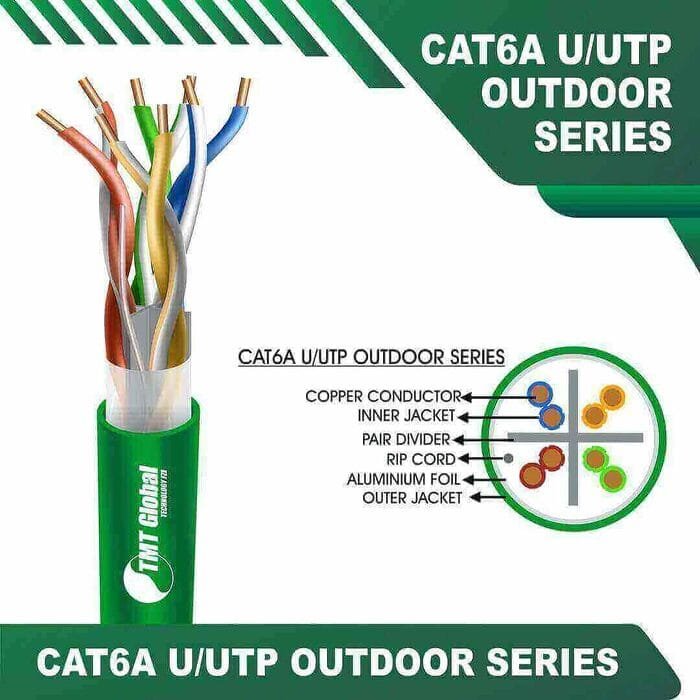

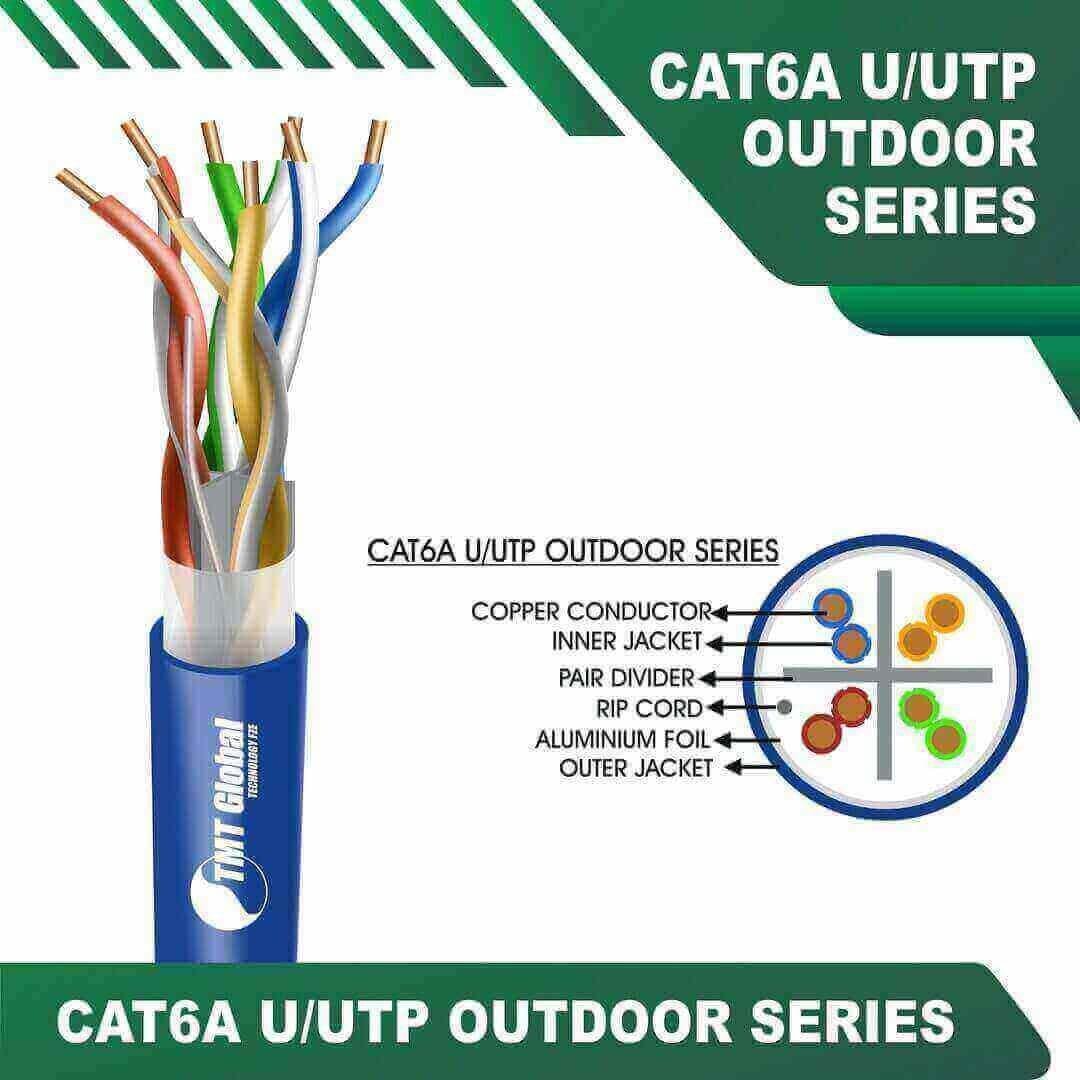

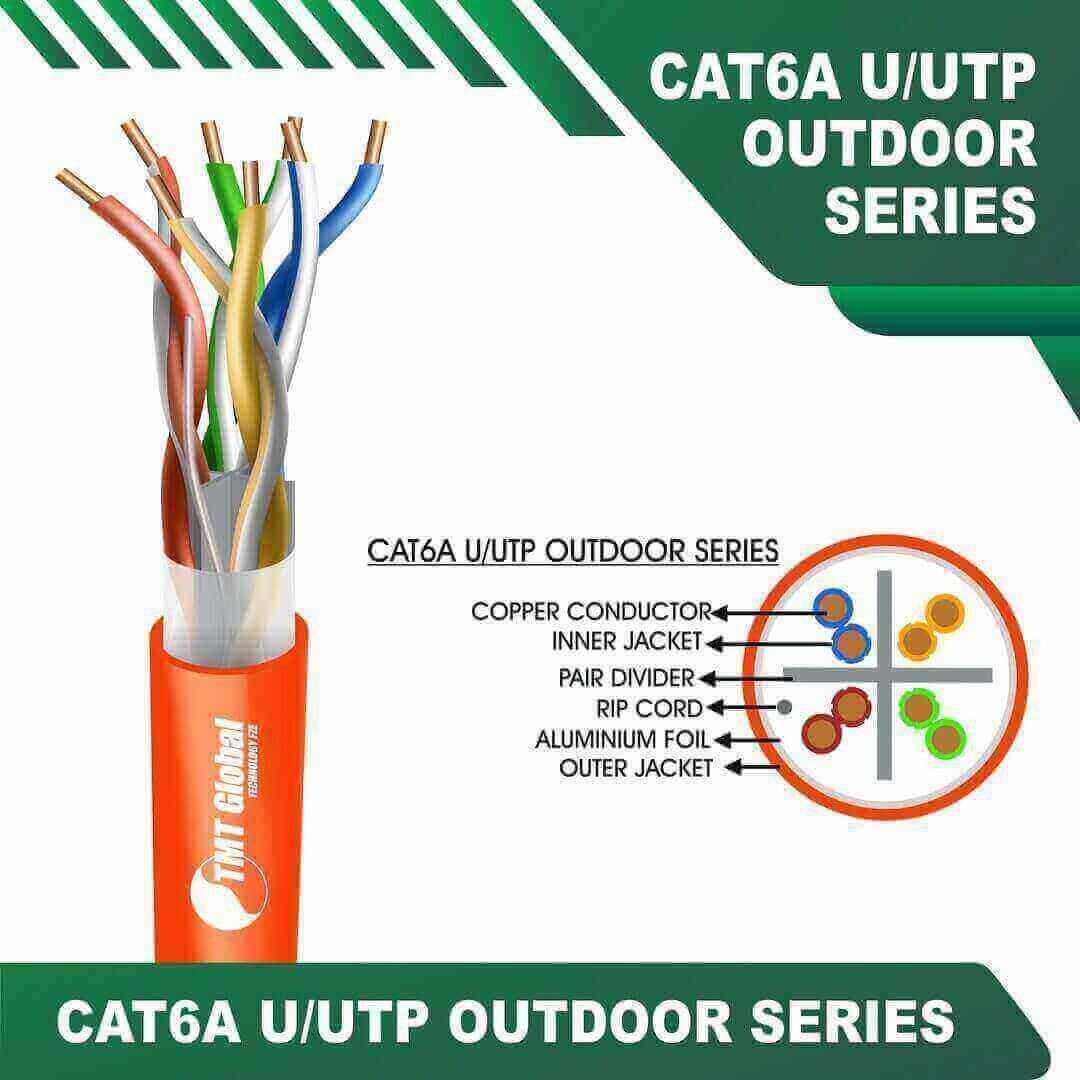

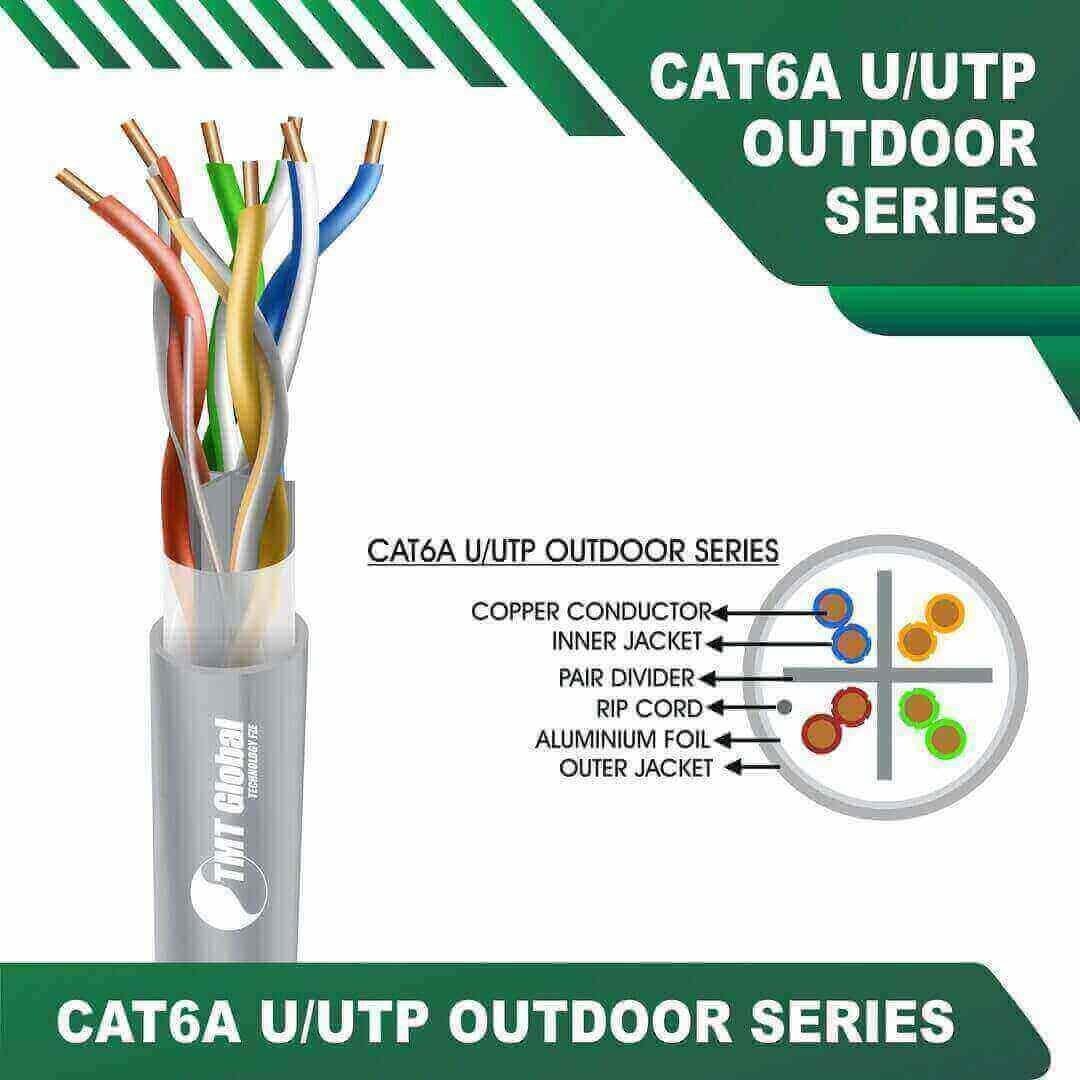

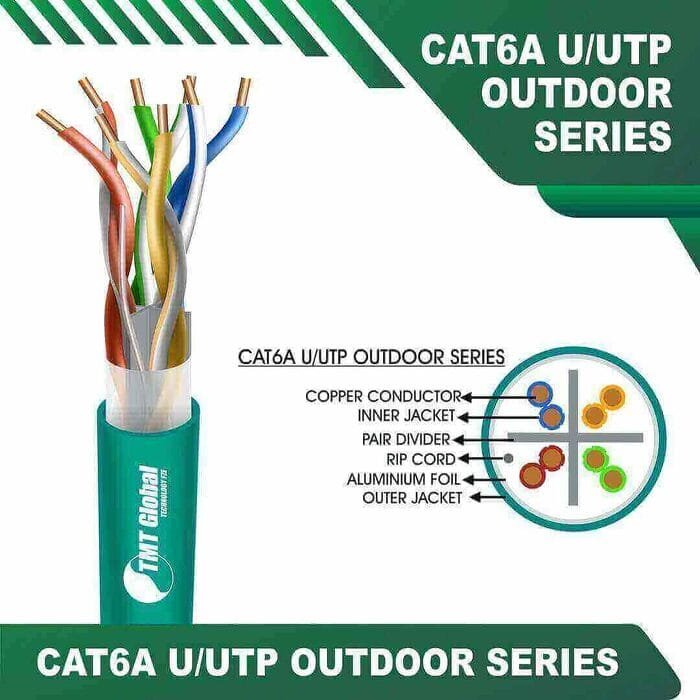

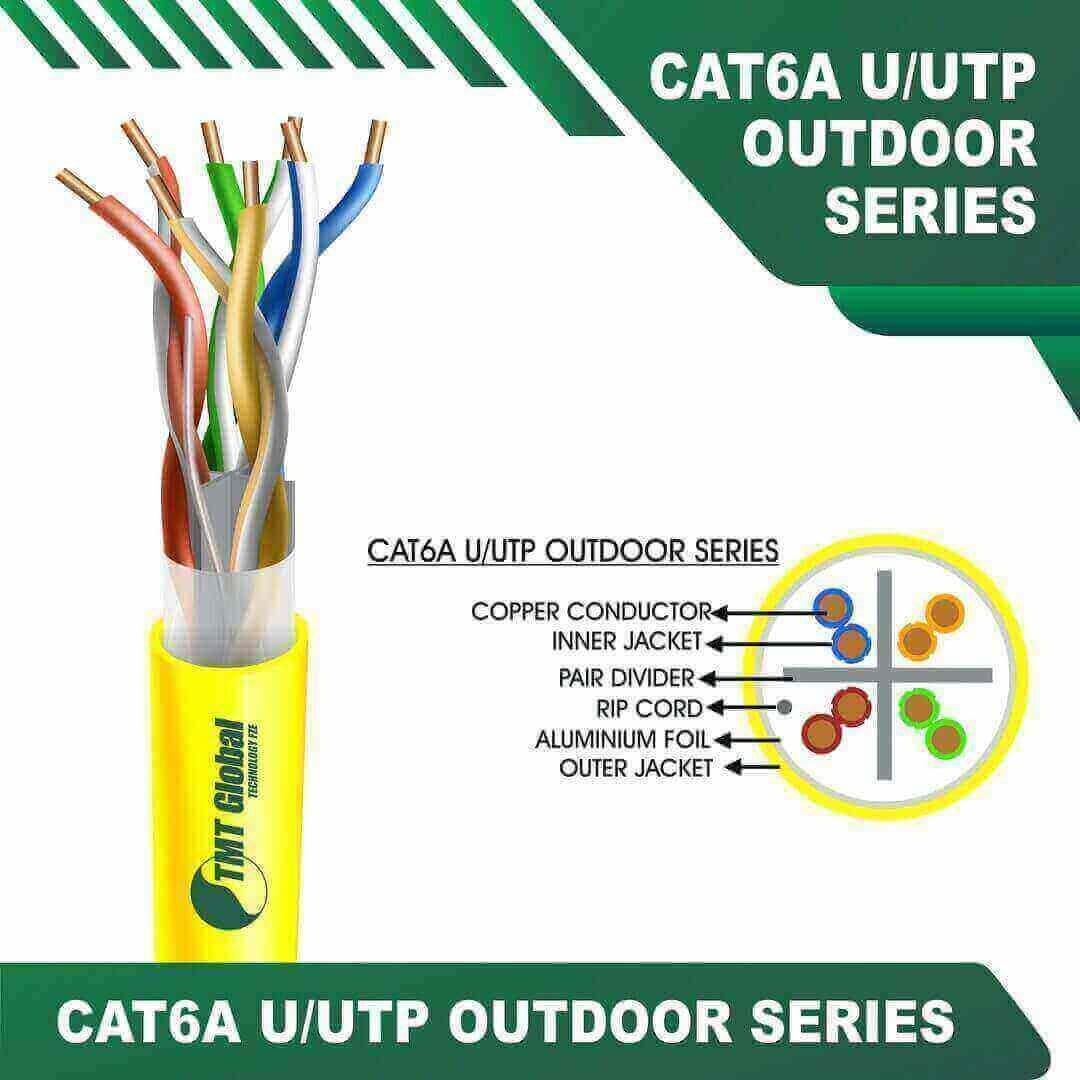

TMT GLOBAL Cat6a 23AWG 4Pair U-UTP Outdoor Solid Cable 305m

Elevate Your Networking Experience

Introducing the Cat6a 23AWG 4Pair U-UTP Outdoor Solid Cable 305m, a top-tier solution designed to meet all your high-speed networking requirements. If you’re looking for reliability and performance in an outdoor setting, this cable is engineered to deliver exceptional data transfer speeds while maintaining robustness against harsh environmental conditions.

Designed for Durability and Performance

This outdoor cable features sturdy 23AWG wire construction, which enhances its conductivity and minimizes signal loss over long distances. With four twisted pairs, the Cat6a ensures optimal data transmission with impressive bandwidth capabilities, perfect for gigabit networks. Whether you’re setting up a new internet service, connecting outdoor security cameras, or establishing network systems in expansive outdoor areas, trust this cable to maintain peak performance even under demanding circumstances.

Easy Installation and Versatile Application

The Cat6a cable comes in a generous 305-meter roll, providing ample length for various projects without the hassle of frequent splicing. Its U-UTP (Unshielded Twisted Pair) design makes it straightforward to install, allowing you to achieve a clean and efficient networking setup. Suitable for residential, commercial, or industrial applications, it is the ideal choice for those requiring a reliable connection for both indoor and outdoor use.

Furthermore, its robust construction protects against UV rays, moisture, and temperature extremes, assuring performance longevity. With the Cat6a 23AWG 4Pair U-UTP Outdoor Solid Cable, you can confidently build a reliable networking infrastructure that stands the test of time, keeping your connections strong and stable.

APPLICATION

10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)

GENERAL SPECIFICATION
4 Pairs UnShielded Twisted Pair (UTP) Cable
Gold Plated: 30U”
Color Code: Aqua/Black/Blue/green/Grey/Orange/Red/Violet/White/Yellow r custom color
Length : 0.12/0.15/0.50/1/2/3/5/8/10/15/20/25/30/40/50/70/100/meter r custom Length
Contact blade: Phosphor Bronze
Insulation Material: HD-PE-PVC-LSZH
Jacket Material: PVC UL94V-0

PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance Unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
By Fahad Cables Industry FZE
