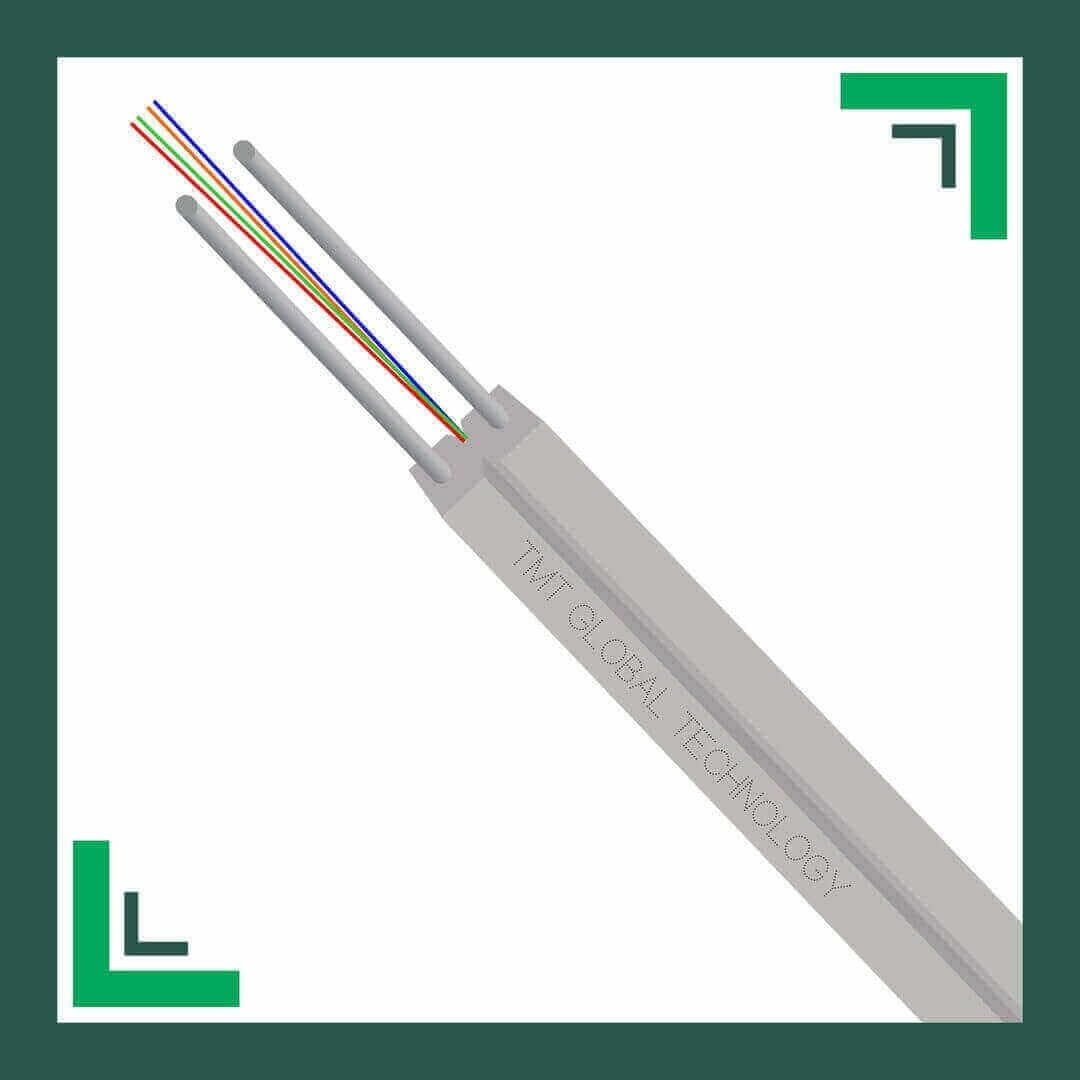

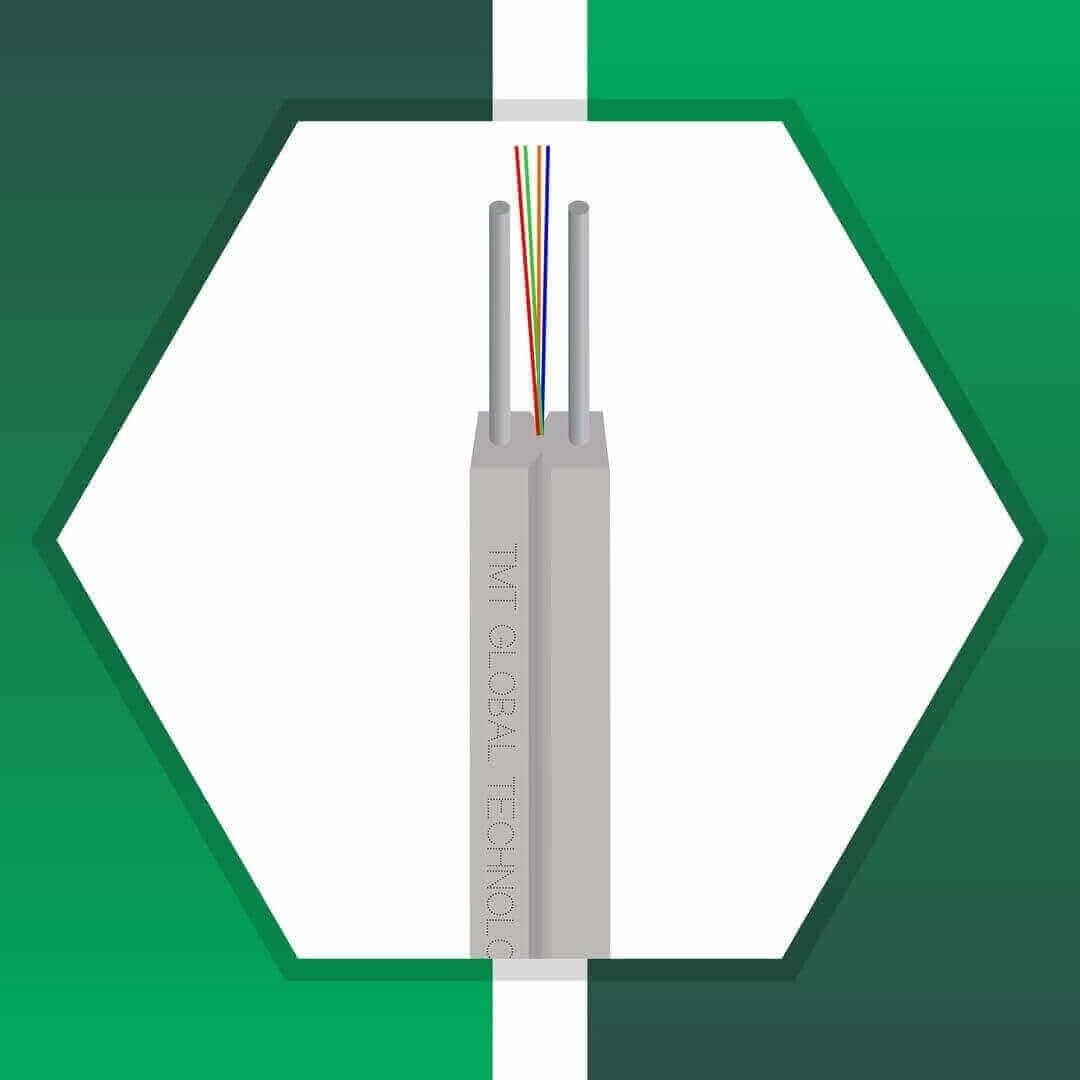

ftth fiber cable 4 Core Single Mode G 657 A1-A2
د.إ2.00
General Specification
Products : FTTH Fiber optic cable single mode
Fiber Count : 4
Fiber Type :ITU-T G.657A1/A2,G.652D
Outer Jacket : LSZH, WHITE
Attenuation (max/KM) :0.40 dB/km (1310 nm) 0.25 dB/km (1550 nm)
Length/ Drum : 2000 m Drum ±
Product ID : TMT-025TLW
0
People watching this product now!
Description
TMT GLOBAL ftth fiber cable 4 Core Single Mode G 657 A1-A2
TMT GLOBAL ftth fiber cable 4 Core Single Mode G 657 A1-A2 provides high-strength optical fiber cables for use in various industrial, indoor, and 4 core sm fiber optic cable outdoor applications. our communications optical fiber cable products can easily meet complex application requirements and specifications. ftth fiber cable 4 Core Single Mode G.657 A1-A2 , indoor drop cable access network fiber unit bend insensitive single mode optical outdoor cable

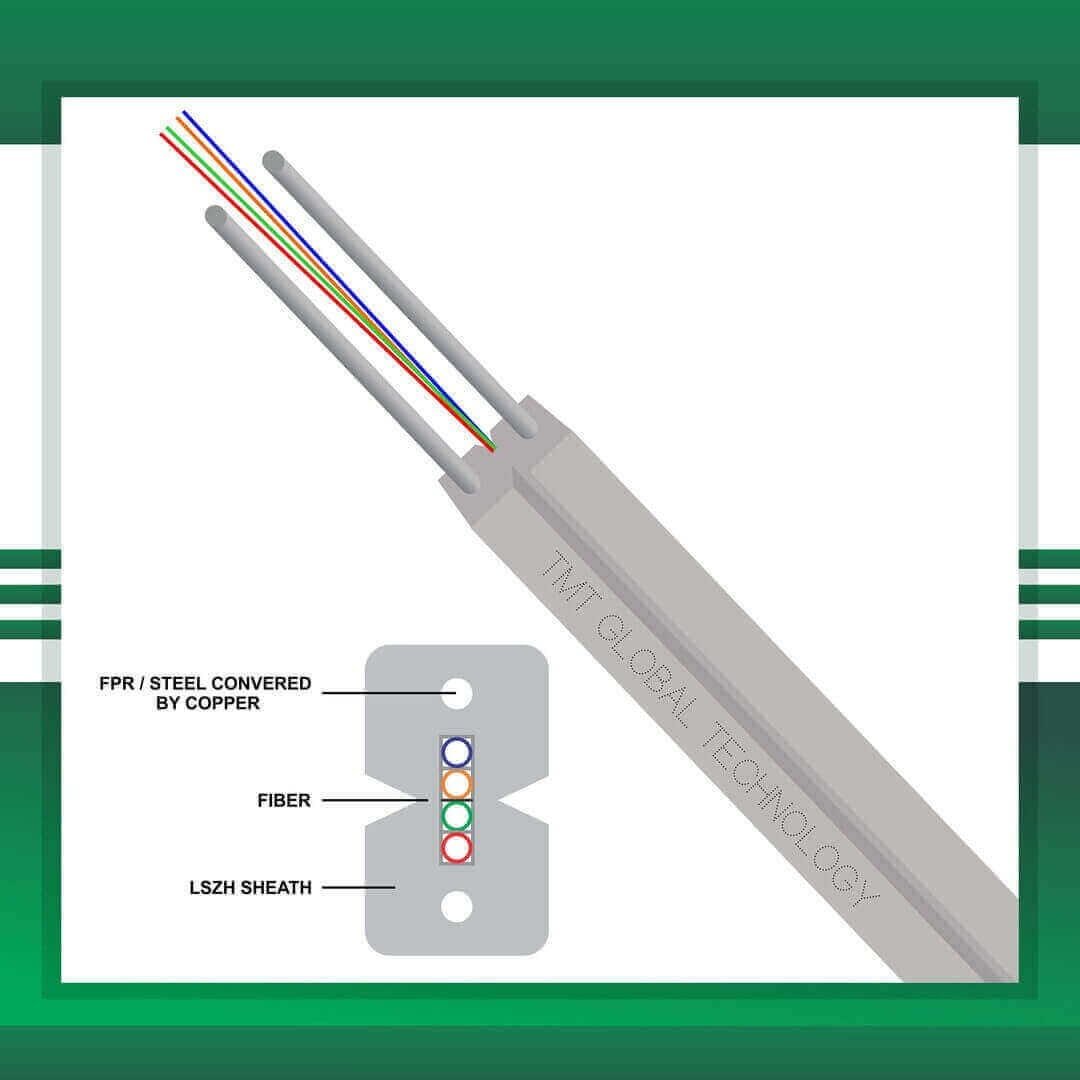

PHYSICAL DESCRIPTION
- Products: Fiber optic cable single mode
- Tube Filling Compound: Thixotropic jelly
- Fiber Type: ITU-T G.657A1/A2,G.652D
- Tube material: PBT ( Polybutylene Terephthalate)
- Armored: Corrugated steel tape
Packing Detail
Fiber Count: 6,8,12,24,48,96,128
Tube Outer/Inner Diameter(mm): 3.0/2.0 ±
Cable Diameter(mm): 7.2*-12
Cable Weight(kg/km): 45±
Length/ Drum: 2000 m Drum ±5%
Ripcord: Polyester cord
Outer Jacket: PE,MDPE, LSZH
Mechanical and Environmental Properties
Physical tests Value Standard
Tensile Strength 2700 N (during Installation) IEC 60794-1-E1
1700 N (during Operation)
Impact Resistance 10J, 3 impacts IEC 60794-1-E4
Crush Resistance 220 N/cm IEC 60794-1-E3
Temperature Cycling -40 to +70 °C IEC 60794-1-F1
Flame Retardancy According to IEC 60332-3 IEC 60332-3
Cable Bending Radius
Bend Radius (during installation) 20x cable diameter IEC 60794-1-2-E11A
Bend Radius (during Service) 1 0x cable diameter IEC 60794-1-E11
Repeating Bending 20x cable diameter IEC 60794-1-E6
Temperature Range)
Operation Temperature -40 to +70 C IEC 60794-1-2-F1
Storage and Transportation Temperature -40 to +70 C
Installation Temperature -30 to +60 C
Optical Characteristics
Fiber type ITU-T G.652D ITU-T G.657/A1 ITU-T G.657/A2
Attenuation (max) 0.40 dB/km (1310 nm) 0.40 dB/km (1310 nm) 0.35 dB/km (1310 nm)
0.25 dB/km (1550 nm) 0.25 dB/km (1550 nm) 0.22 dB/km (1550 nm)
MFD 9.0±0.4 μm (1310 nm) 9.0±0.4 μm (1310 nm) 8.6 ± 0.4 μm (1310 nm)
10.1±0.5 μm (1550 nm) 10.1±0.5 μm (1550 nm)
Cladding diameter 125 ± 0.3 μm 125 ± 0.7 μm 125 ± 0.7 μm
Core/Clad Concentricity error ≤ 0.5 μm ≤ 0.5 μm ≤ 0.5 μm
Zero dispersion wavelength 1300nm≤ ≤1324nm 1300nm≤ ≤1324nm 1302nm≤ ≤1322nm
Cladding non-circularity ≤ 0.7 % ≤ 0.7 % 1%
Coating diameter 245 ± 10 μm 242 ± 7 μm 240 ± 5 μm
Cut Off Wavelength ≤ 1260nm ≤ 1260nm ≤ 1260nm
Proof Test ≥ 1% (100kpsi or 0.7GPa) ≥ 1% (100kpsi or 0.7GPa) ≥ 1% (100kpsi or 0.7GPa)
Macro bending Attenuation : (10 turn on a 15 mm radius mandrel) ≤ 0.25 dB @1550 nm ≤ 0.5dB @1550 nm
