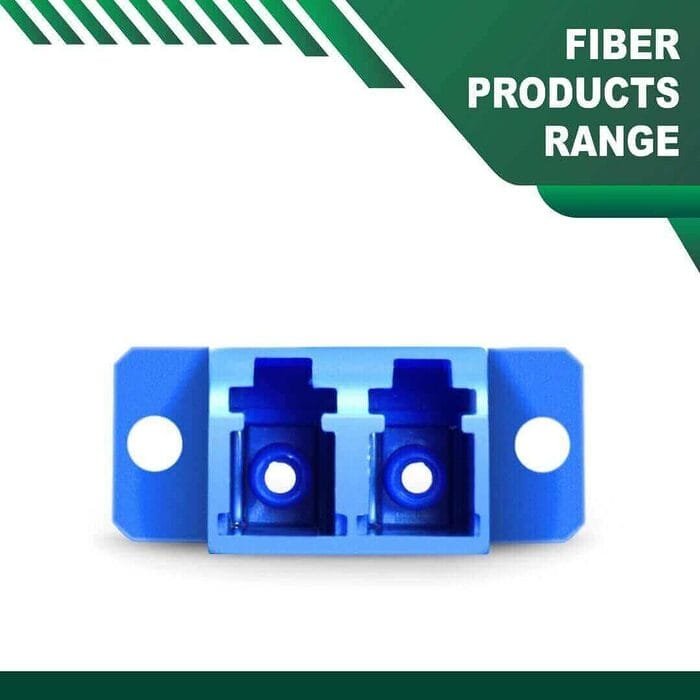

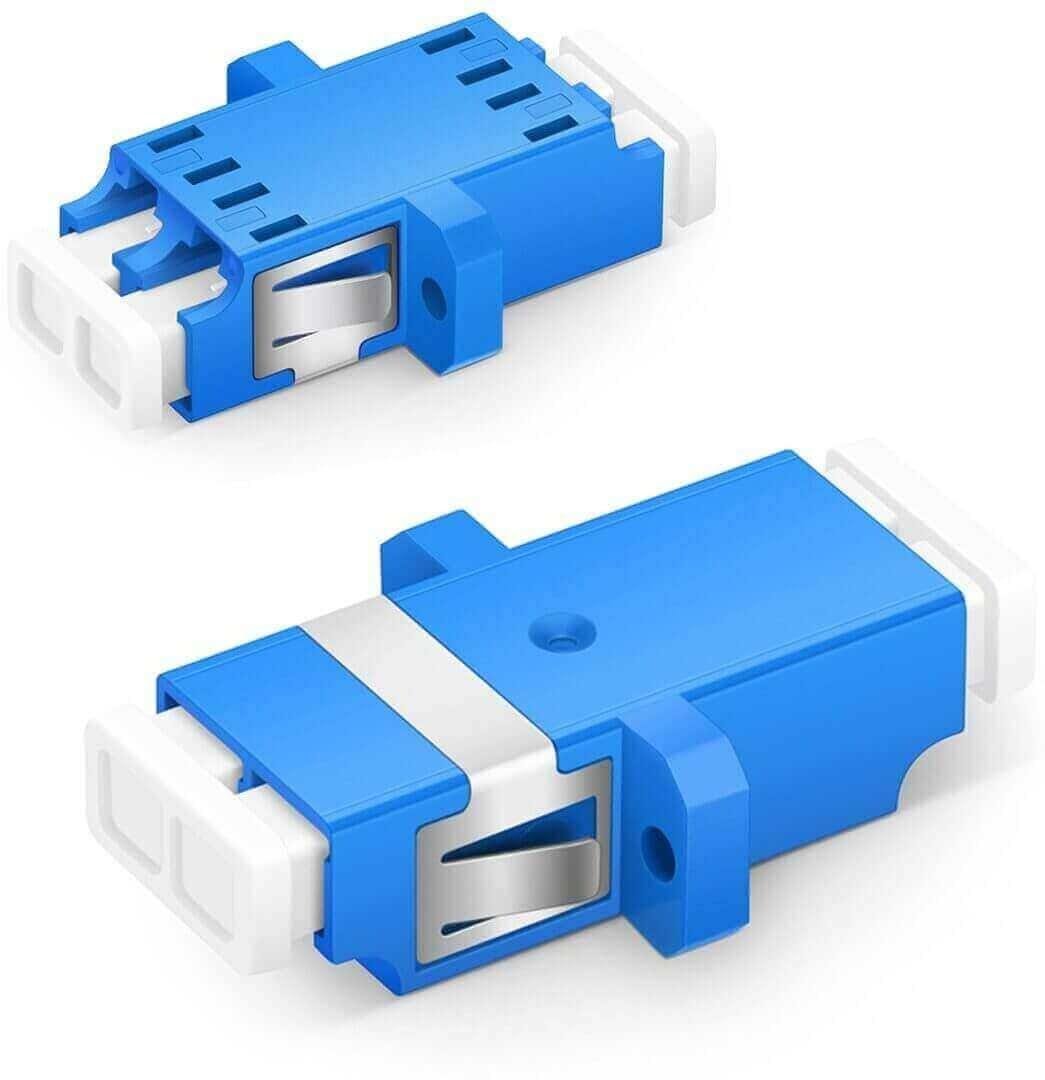

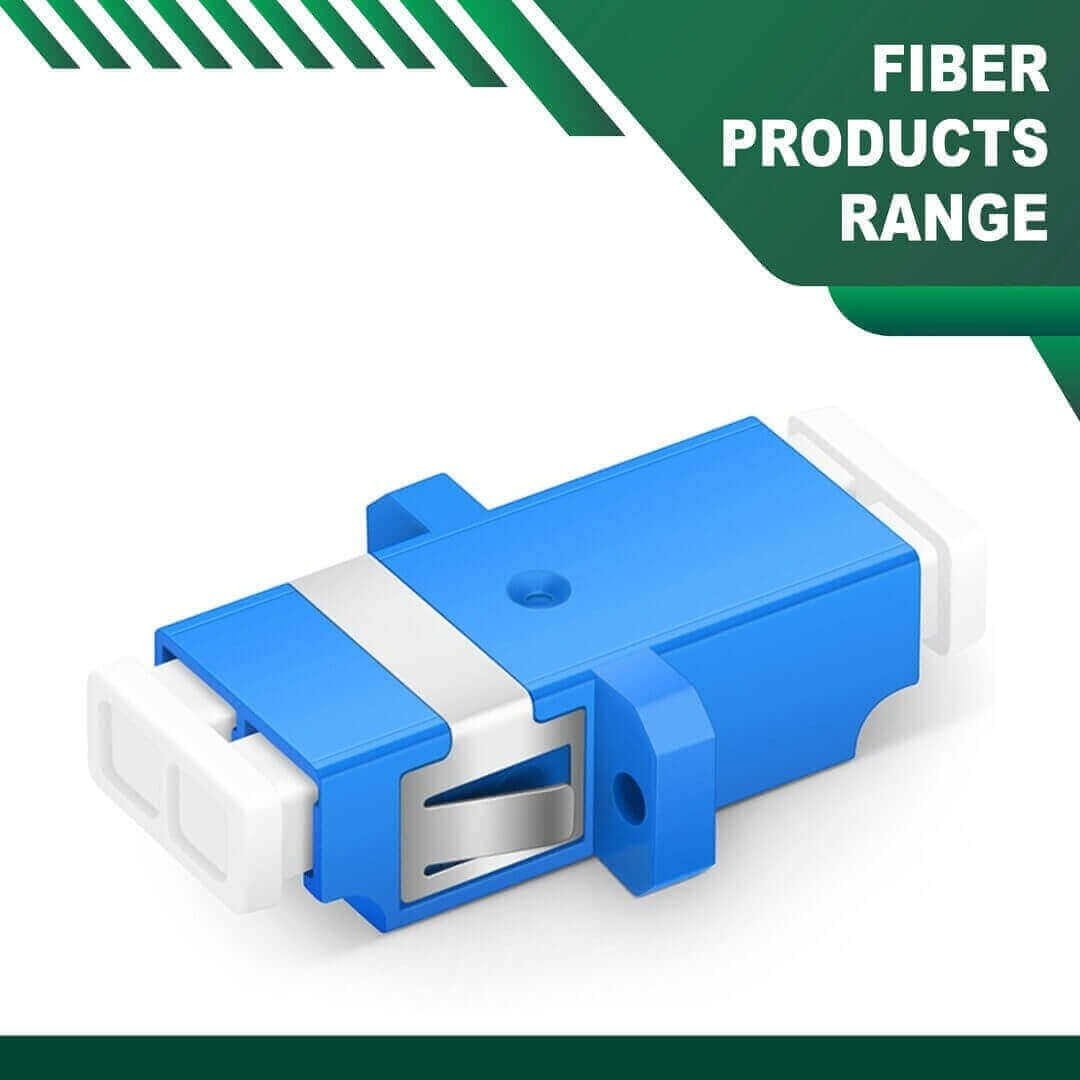

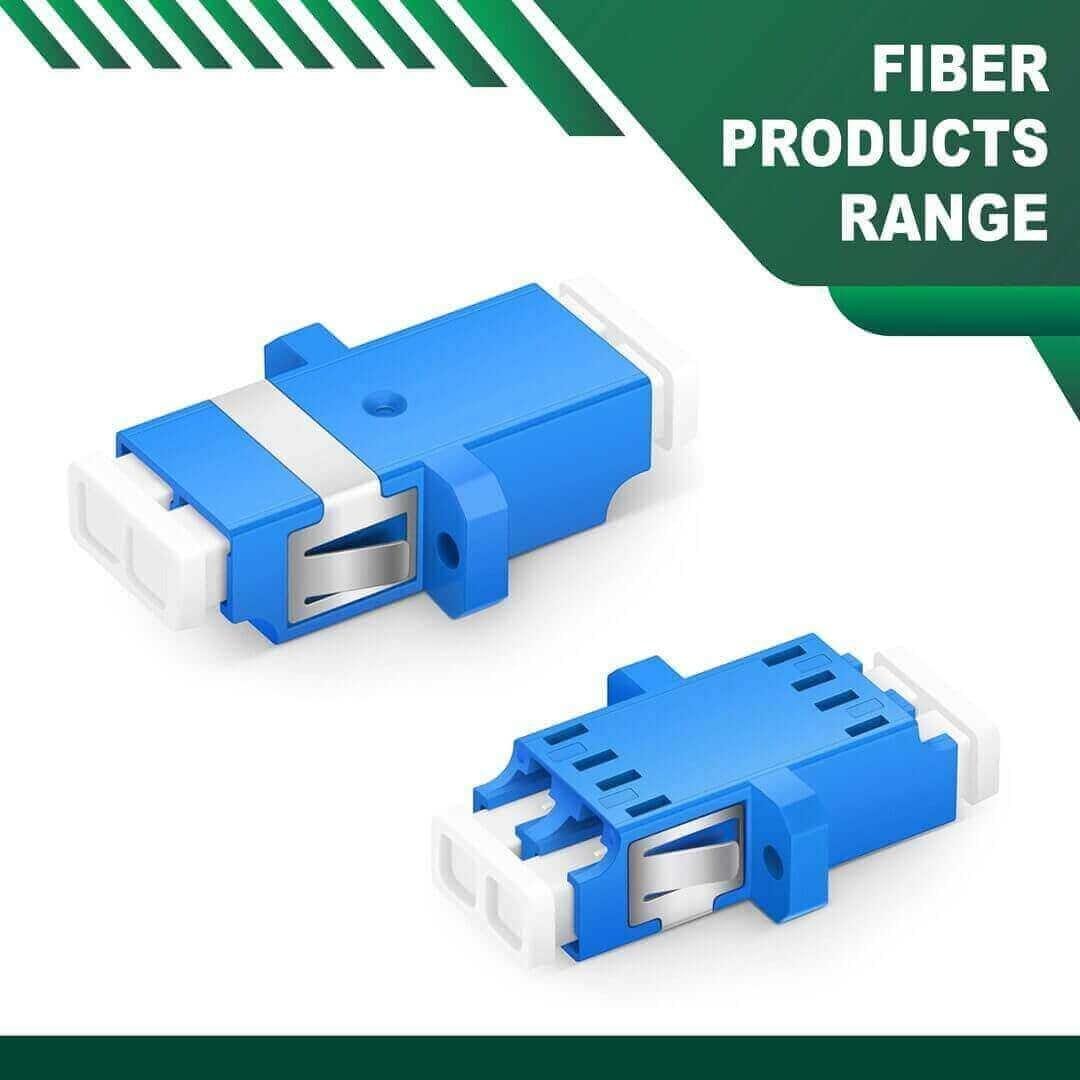

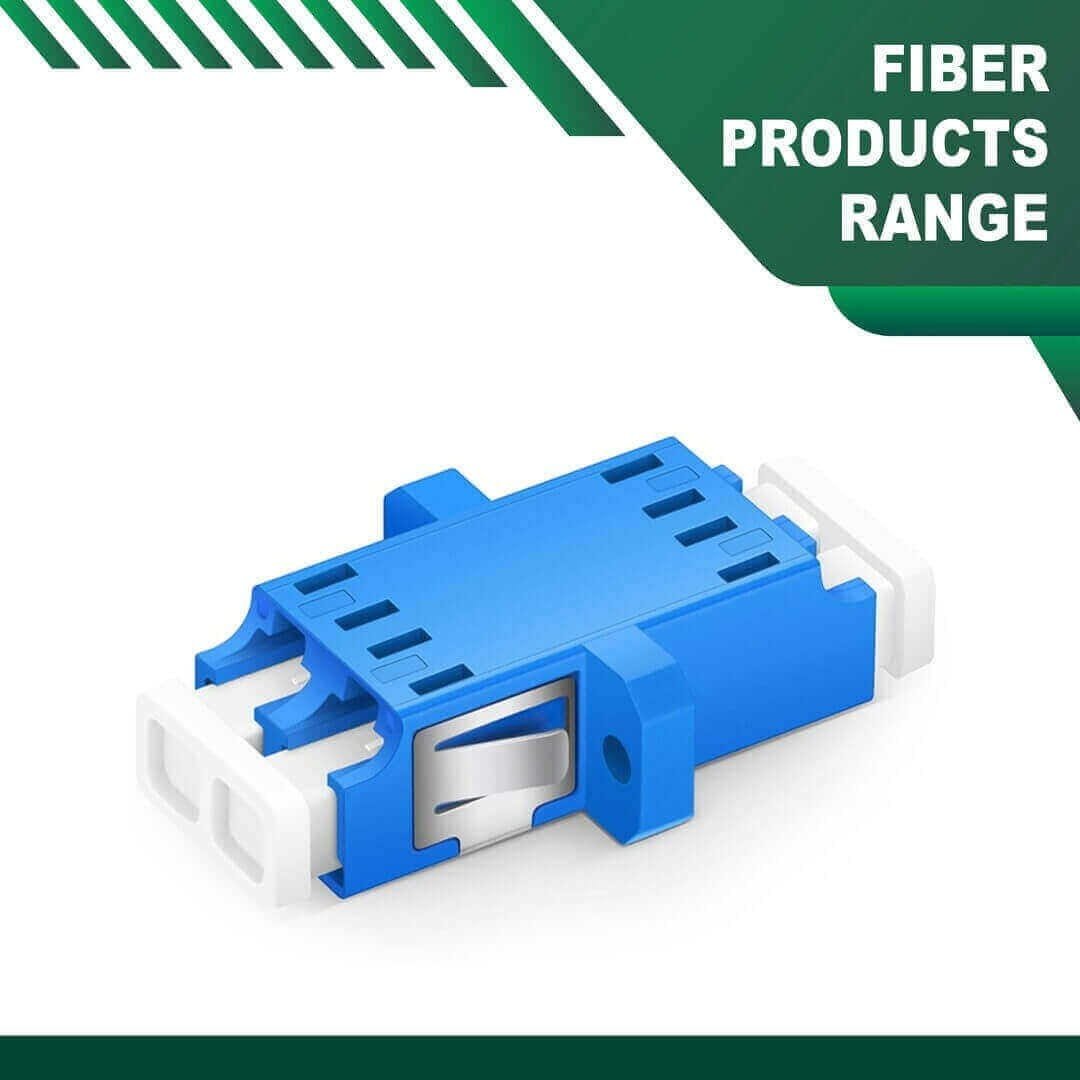

lc/ upc adapter duplex fiber Optical Connector Single Mode

TMT GLOBAL Optical Connector adapter LC-UPC Single Mode duplex

Explore the importance of optical connector adapters in fiber optic systems, highlighting the versatile OM4 SC/UPC multimode simplex adapter for high-speed data transmission. Understand the different types of optical connectors including OM2, OM3, and single-mode options, and learn why TMT Global Technology Ltd. is a trusted manufacturer in this field. Enhance your networking capabilities with industry-standard, high-quality connectors designed for reliable performance in data centers and high-bandwidth environments.lc/ upc adapter duplex fiber Optical Connector Single Mode

Features
TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
Complies with IEC 61754-4, Flammability UL94 V-0 standard
Available in Flanged and Flangeless options
Precision connection with sleeve
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy

Products Specifications
Adapter Type: LC-LC,SC-SC
Polish Type: UPC
Body Type: Simplex, Duplex
Fiber Mode: Multi Mode
Insertion Loss: ≤0.2dB
Durability: 1000 time
Flammability Rate: UL94-V0
Alignment Sleeve Material: Ceramic
Storage Temp（℃）: -40～+85

General Specification
Adapter Type : SC-SC
Polish Type : UPC
Body Type : Duplex
Fiber Mode : Multi Mode
Insertion Loss : ≤0.2dB
Durability : 1000 time
Flammability Rate : UL94-V0
Alignment Sleeve Material : Ceramic
Storage Temp（℃ : -40～+85
Products ID : TMT-SCDXU4P

Environment and Mechanical
Properties                                        Test condition                                                     Conformance          Test result
Vibration                                               10-55Hz, 1.5mm, 60min                                           IEC61300-2-1             ≤0.2dB
Mating Durability                                1000 Mating, clean every 25 mating                     IEC61300-2-2             ≤0.2dB
Impact                                                    1.5m, 8 drops                                                              IEC61300-2-6             ≤0.2dB
Strength of Coupling Mechanism    40N, 10Min, L=22-28cm                                          IEC61300-2-12           ≤0.2dB
Temperature Cycling                          40ºC to +75ºC, 40 cycles                                          IEC61300-2-22           ≤0.2dB
Temperature humidity cycling          40ºC， 95%， 96Hr                                                 IEC61300-2-21            ≤0.2dB
Operating Temperature                     -40ºC to +85ºC
Storage Temperature                          -40ºC to +85ºC
