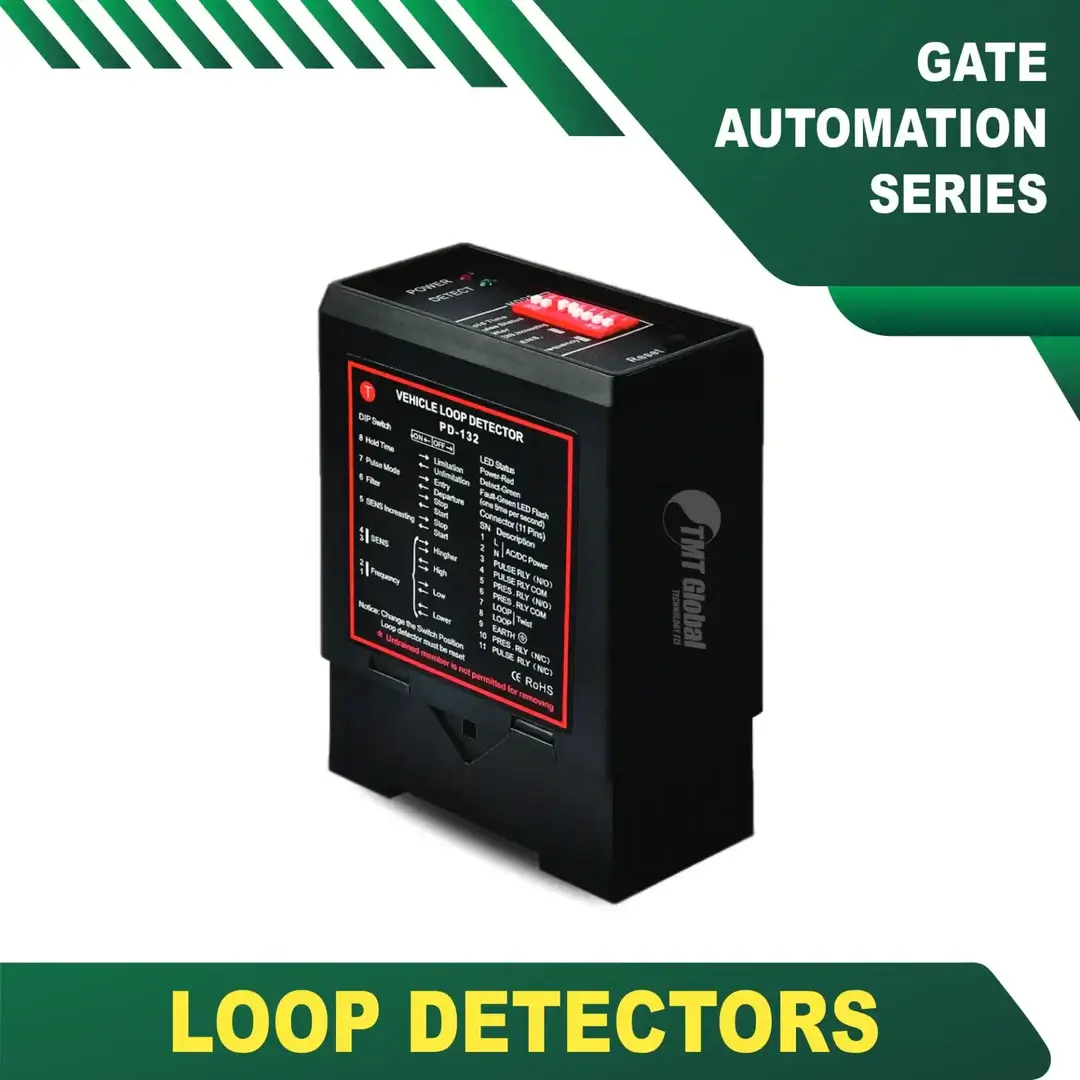

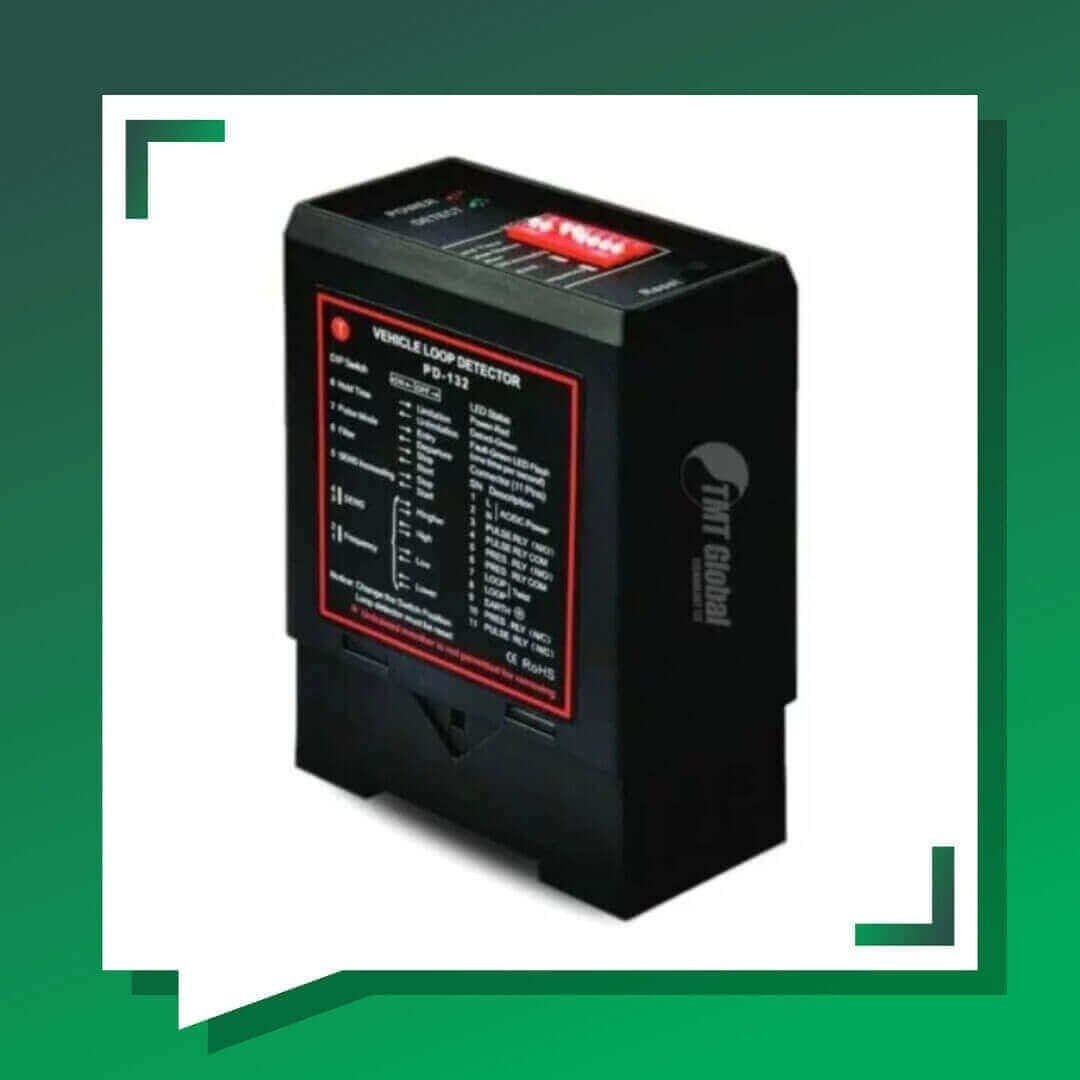

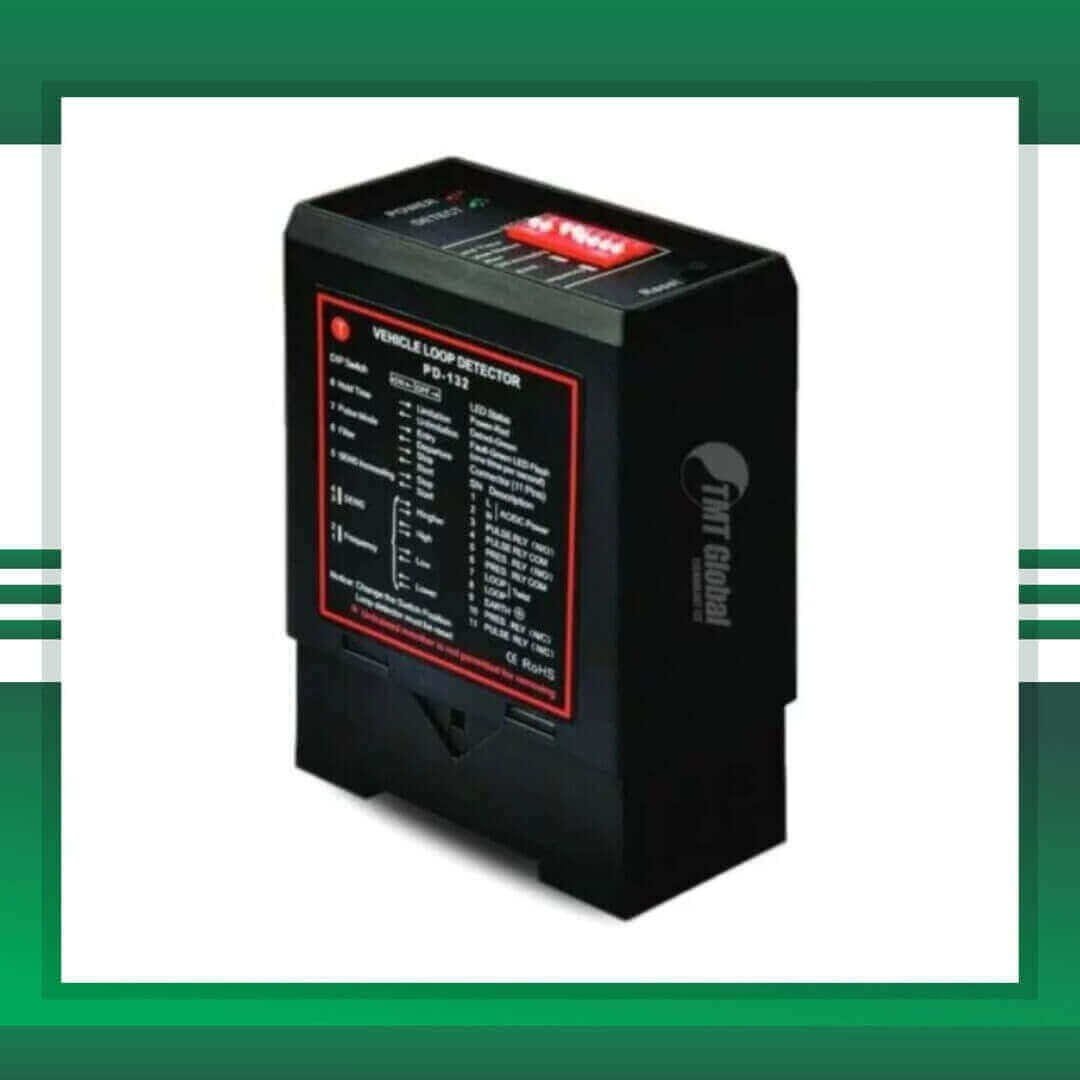

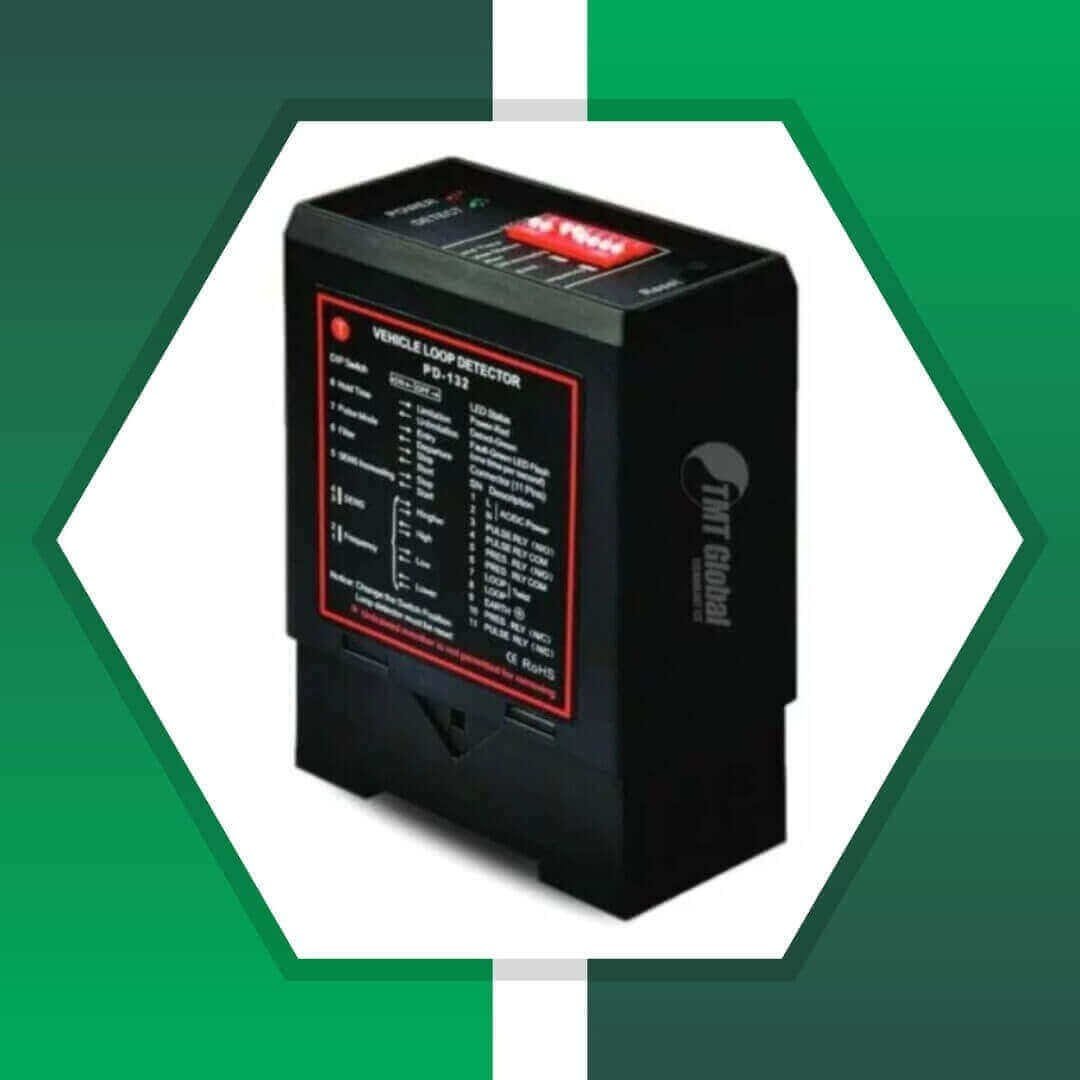

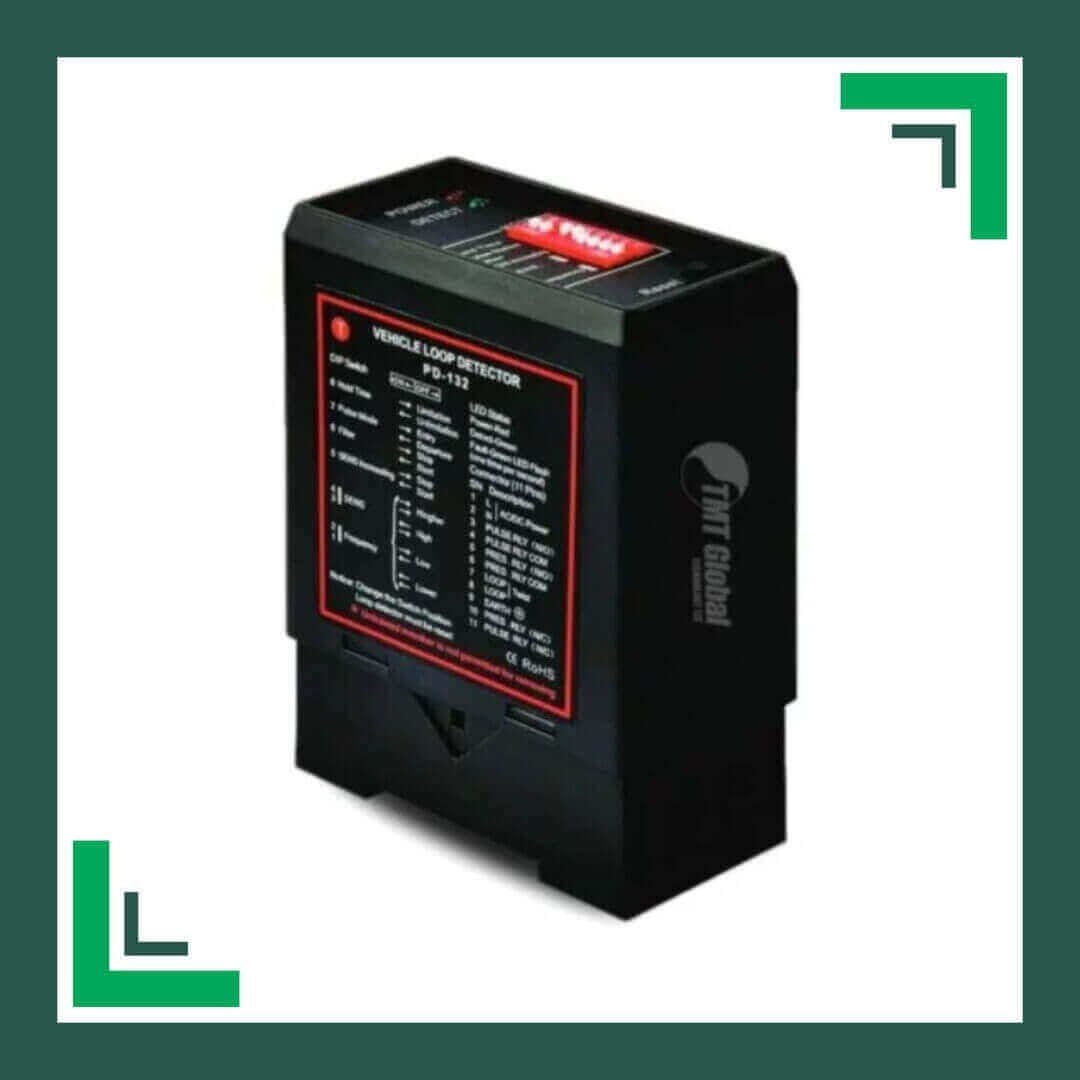

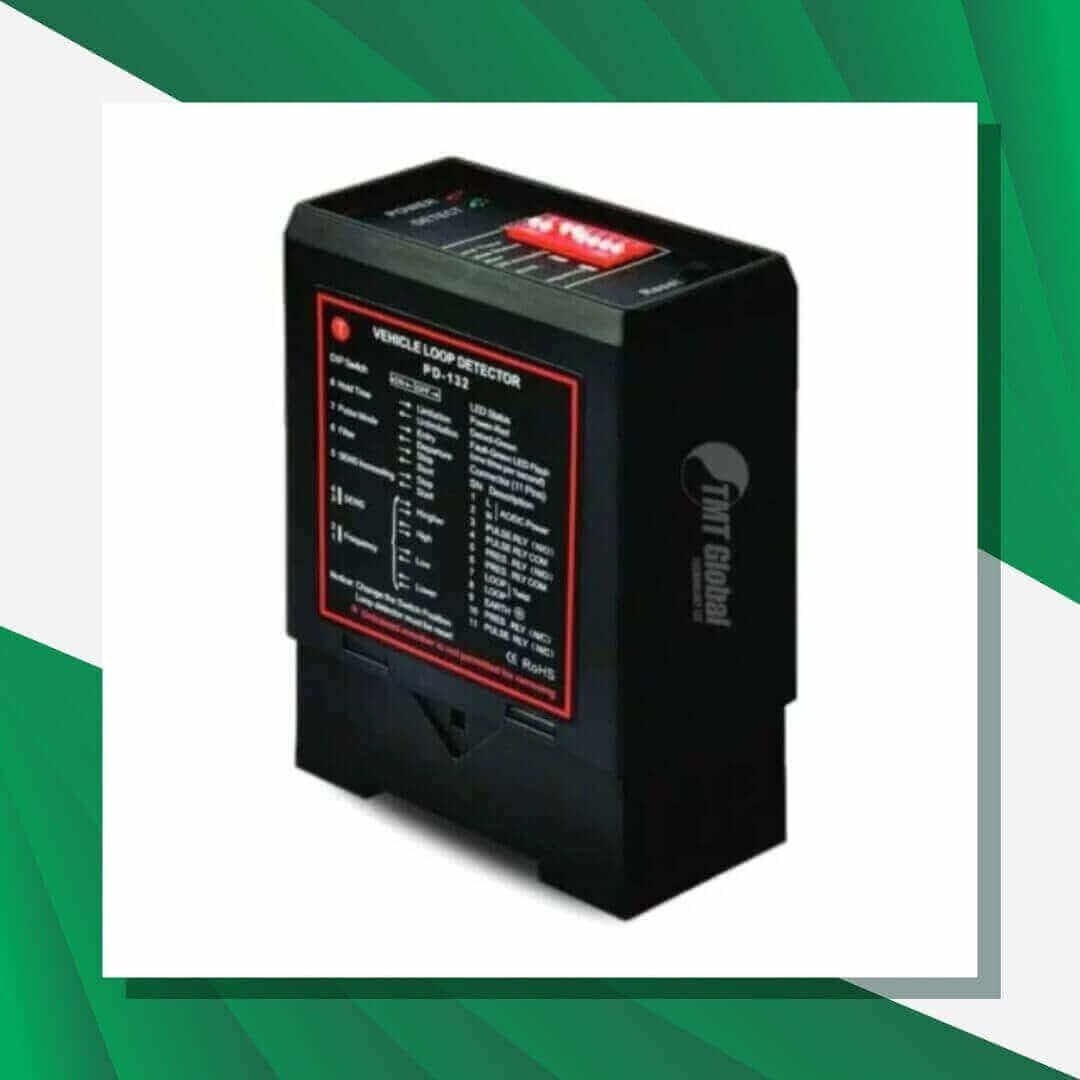

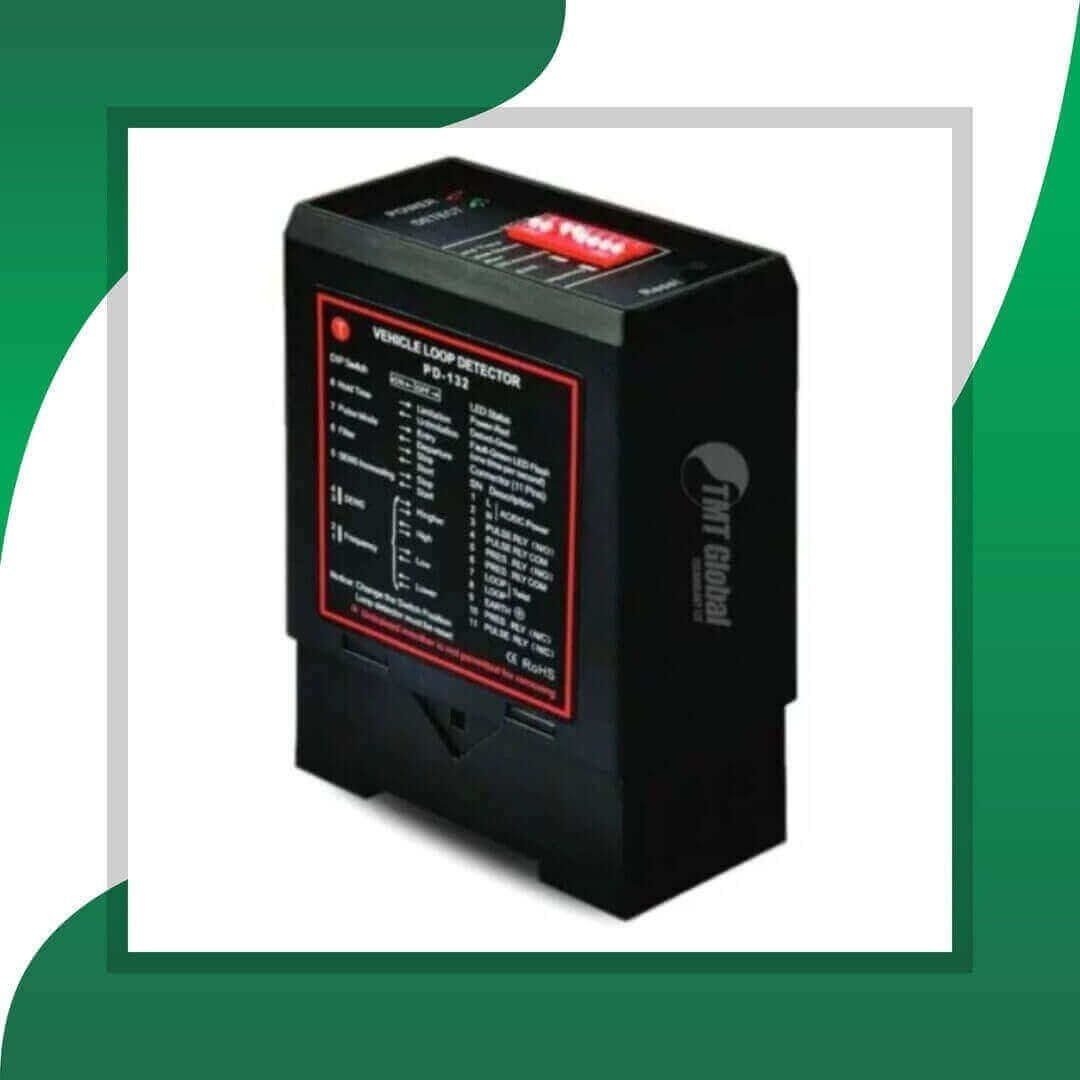

loop sensor for gate Automation Dual Channel 12-24V AC

TMT GLOBAL loop detector Gate Automation Dual Channel 12-24V AC

tmt loop sensor for gate Automation Dual Channel 12-24V AC in recent years have become a popular tool having innumerable applications in policing,loop detector Gate Automation Dual Channel 12-24V AC

TMT Global Technology LTD aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation

Technical Parameters

• Product Name: Loop Detector
• Self-turning range: 20-2000μH
• Response Times: Turn-on 10-90MS Turn-off 10-90MS
• Sensitivity: 16 way selectable , Highest 0.010% DL/L , Lowest 2.56% DL/L
• Power Requirements: 110-240VAC (48 to 62Hz) 12-24VADC(48 to 62Hz)
• Visual Indications: Power LED-Red,  Channel LED-Green
• Reset: Reset by push button on front of enclosure
• Frequency Four step switch selectable 20-80KHz
• Relay Output: Presence Relay/Fault Relay
• Voltage tolerance : AC+10% / -15%
• Voltage tolerance : DC±15%
• Device Channel: Single /Double
• Operating temperature: 40℃ to +70℃ (-111℉ to +158℉)
• Sensitivity : 4 levels adjustable
• Relative Humidity: <95%
• Application: open gate, match with barrier gate, gate opener etc.

General Specification
Product Name: Loop Detector
Self-turning range; 20-2000μH
Response Times :Turn-on 10-90MS Turn-off 10-90MS
Power Requirements: 110-240VAC (48 to 62Hz) 12-24VADC(48 to 62Hz)
Visual Indications: Power LED-Red, Channel LED-Green
Frequency: Four-step switch selectable 20-80KHz
Relay Output: Presence Relay/Fault Relay
Voltage tolerance : AC +10% / -15%
Device Channel: Double
Application: open gate, match with barrier gate, gate opener etc
Model No. :TMT-7763
