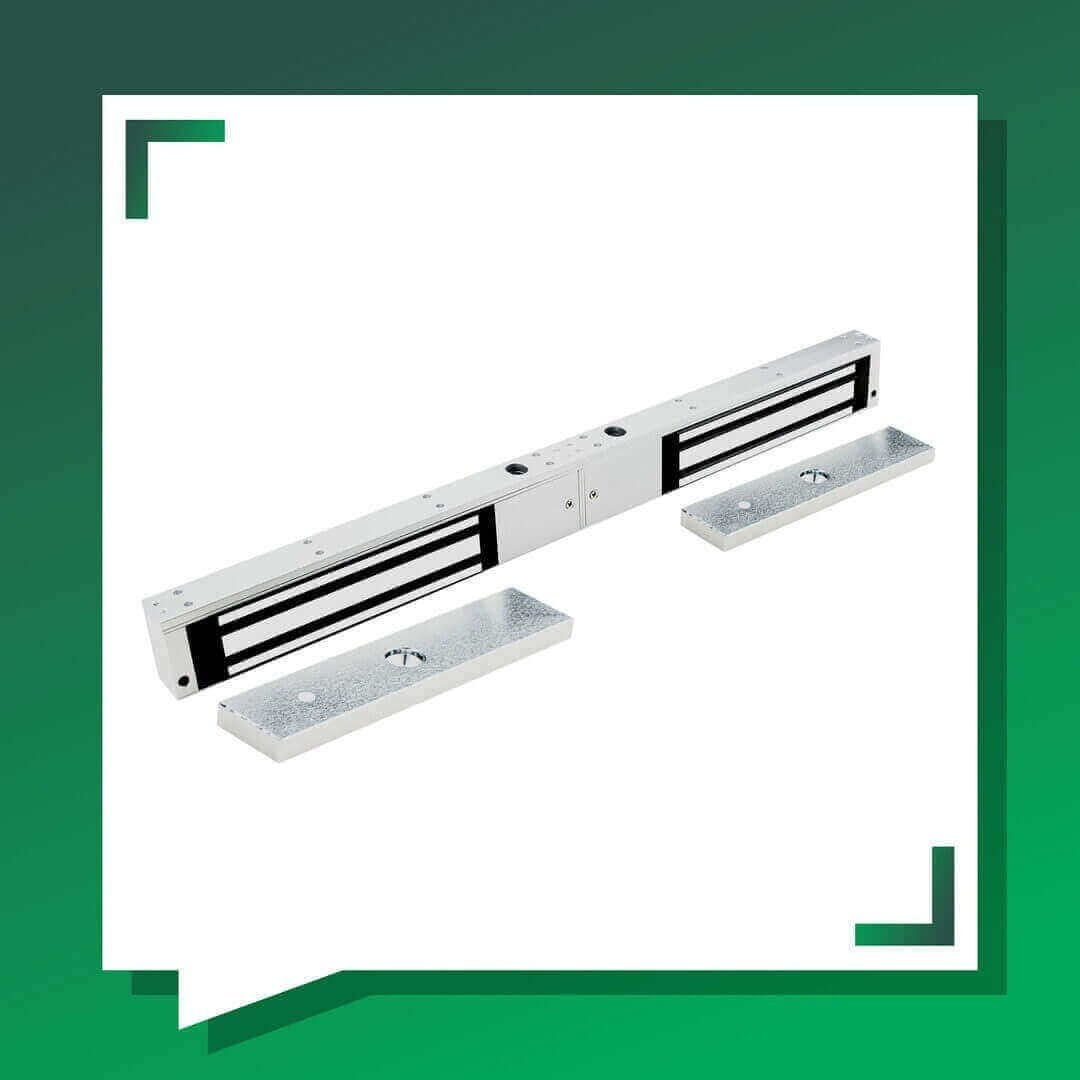

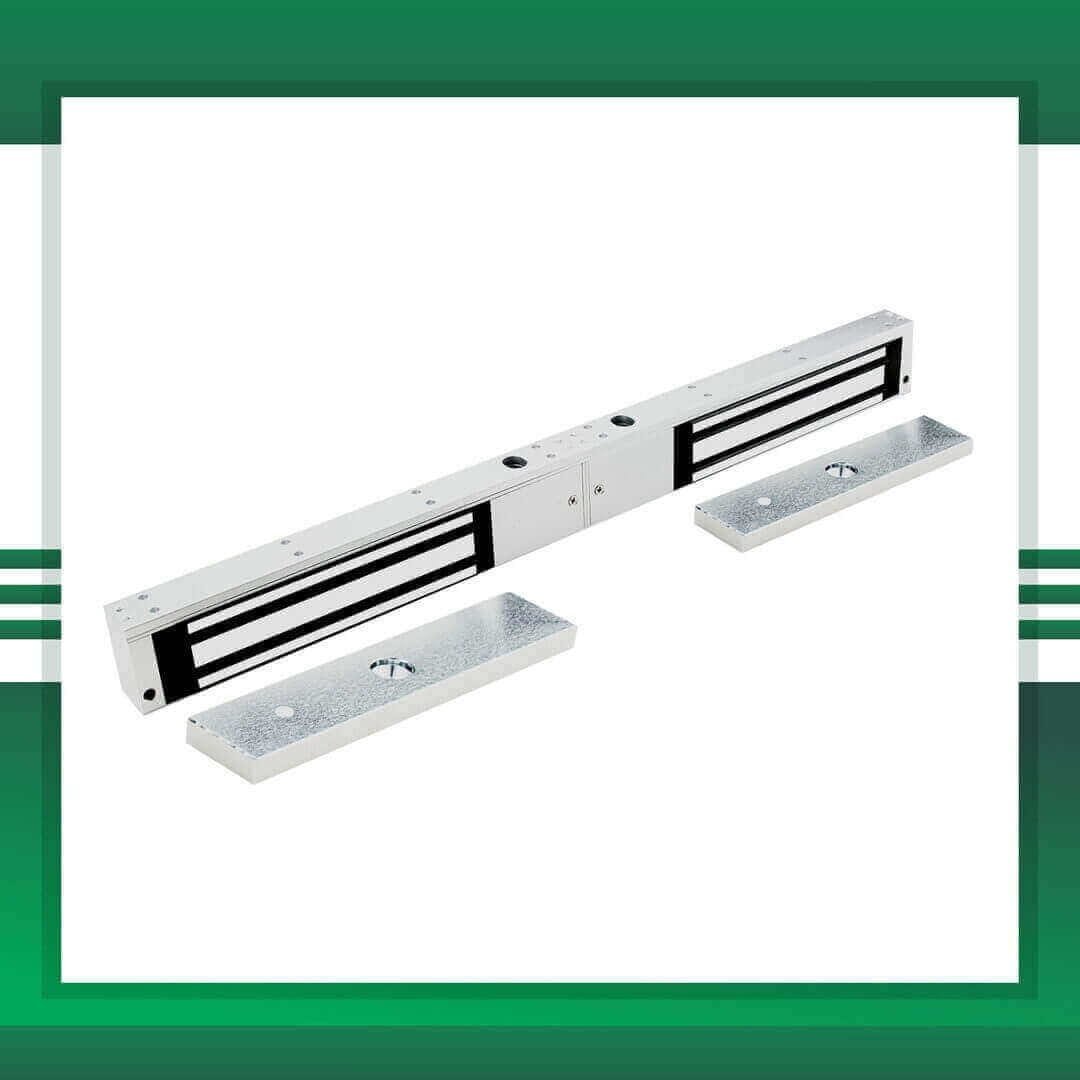

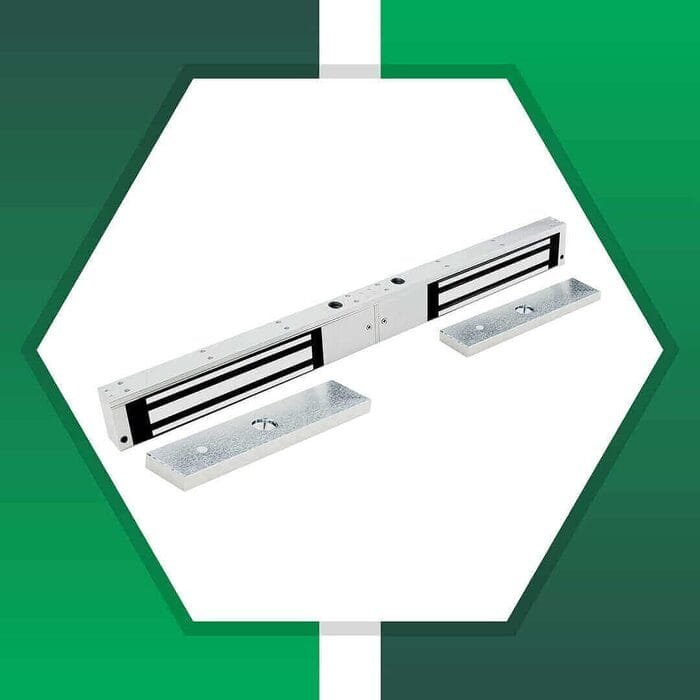

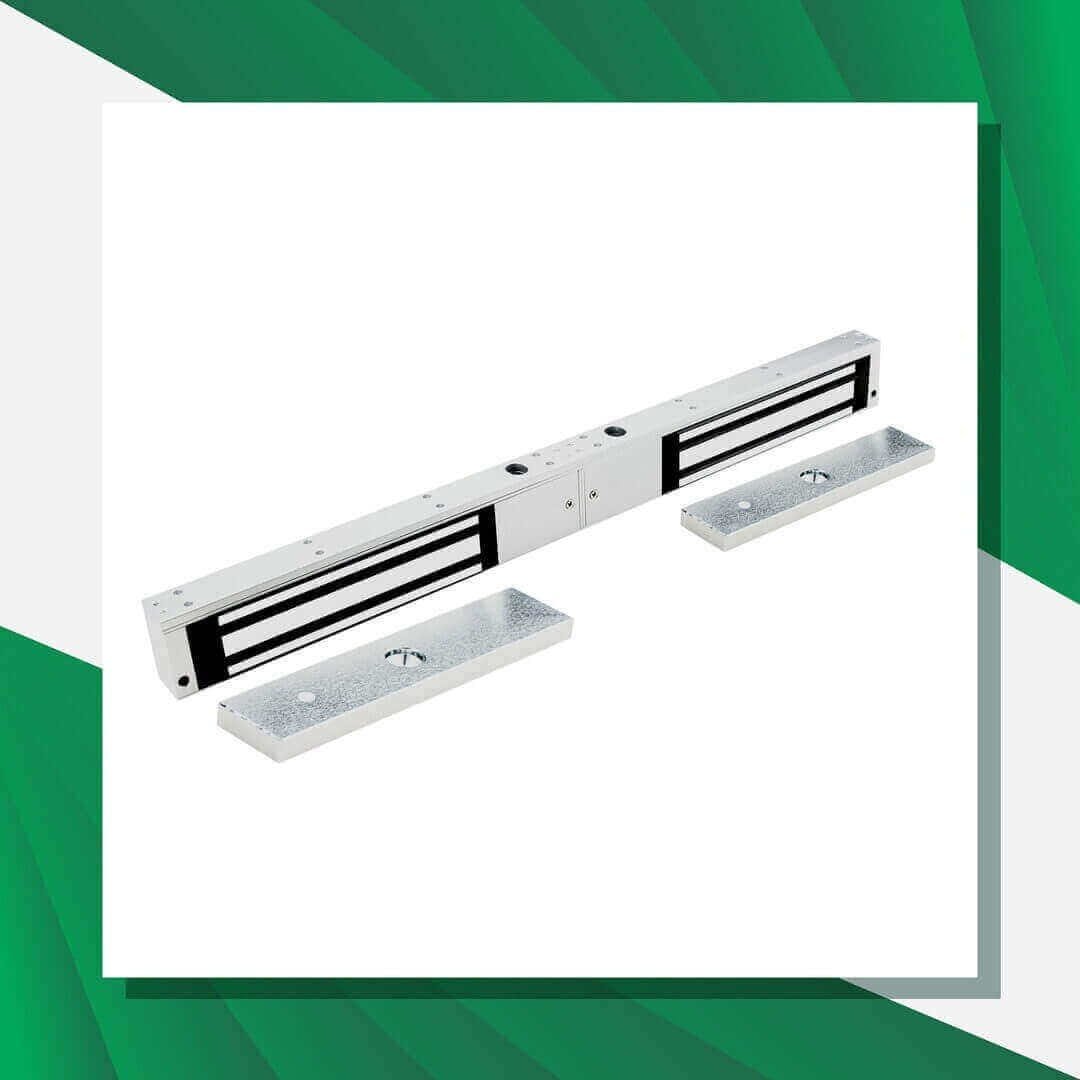

magnetic lock double door 280 kg

TMT Global magnetic lock double door 280 kg

TMT GLOBAL magnetic lock double door 280 kg is using the leading production equipment and packaging technology of the international. Produced the electromagnetic lock is not only higher than similar products by more than 20% of the lock holding force, but also the antioxidant capacity of the surface of magnetic lock is reached the international advanced level.

Application:

• airports
• subways
• banks
• prisons
• intelligent buildings.

TMT Global Technology LTD

aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation CCTV Systems

Lighting Control Systems

PIR Motion Sensors UHF Long Range Readers Burglar Alarm Systems Automatic Parking Solutions SMATV Systems Smart Home Automation Audio Video Intercom Systems Audio Visual Systems Public Address Systems Central Clock Systems. Industrial and Building automation Cables and Accessories which leads to satisfaction and reliability to customers. All TMT Global Products meet or Exceed Rigorous Industry and Regulatory Standards for Quality Reliability and efficiency.Magnetic Door Lock Double Door 208kg

General Specification
Lock Size: 500L*47W*26H(mm)
Armature plate : 180L*38W*11H(mm)
Holding Force : 280kg(350Lbs)
Voltage : DC12V or DC24V (adjustable)
Current Draw : 12V/500mA 24V/250mA
Signal Output: Dry Contact, Max Rating of Contact Current 3A
Surface Temp:  ≤+20℃
Operating Temp:  -10～+55℃(14-131F)
Finishes for Magnetic: Zinc
Weight : 4kg
Model No: TMT-7649
