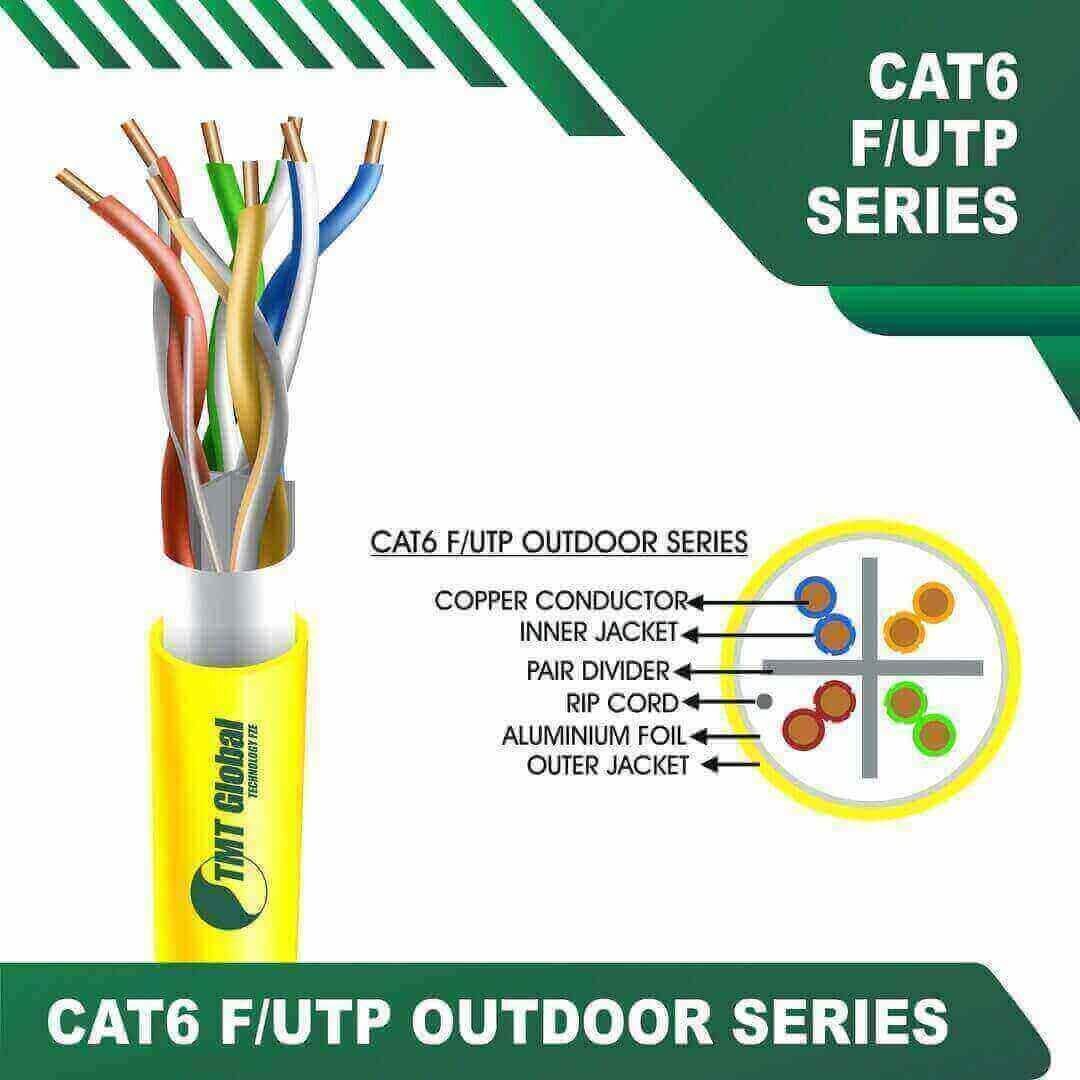

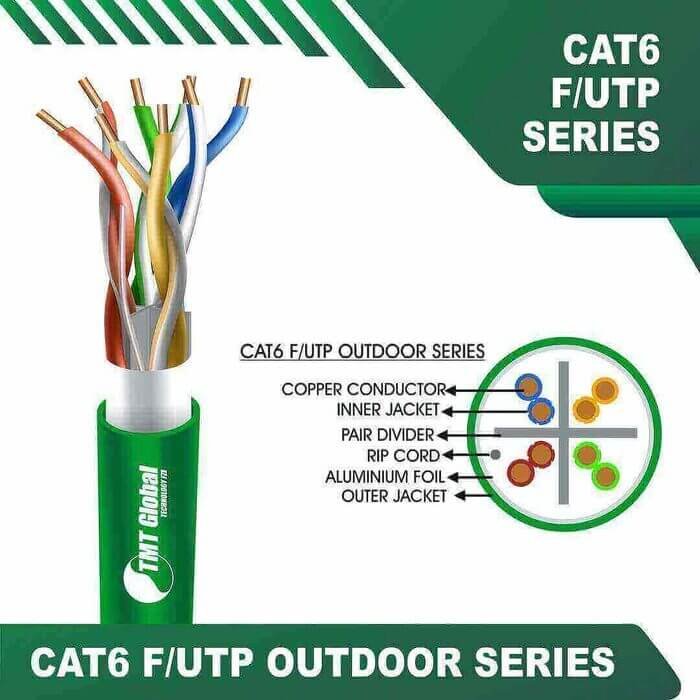

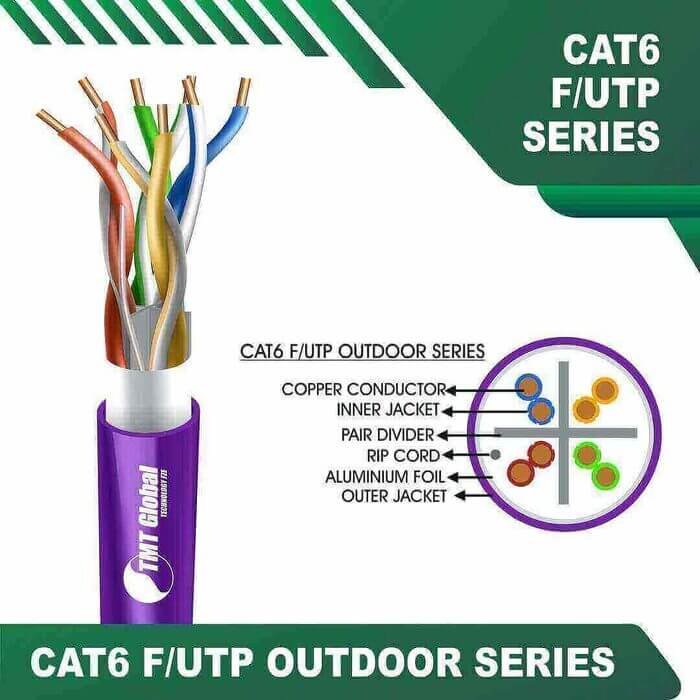

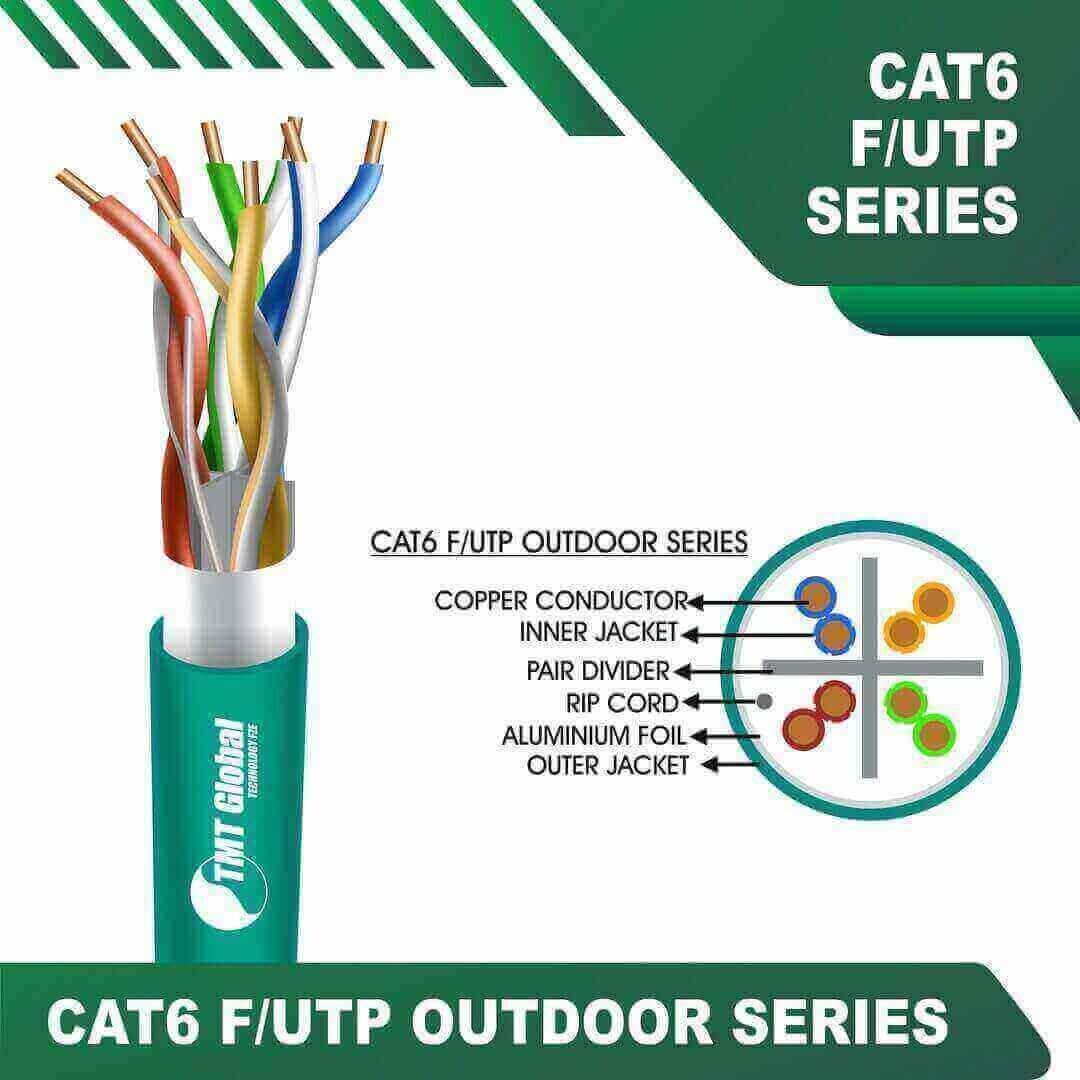

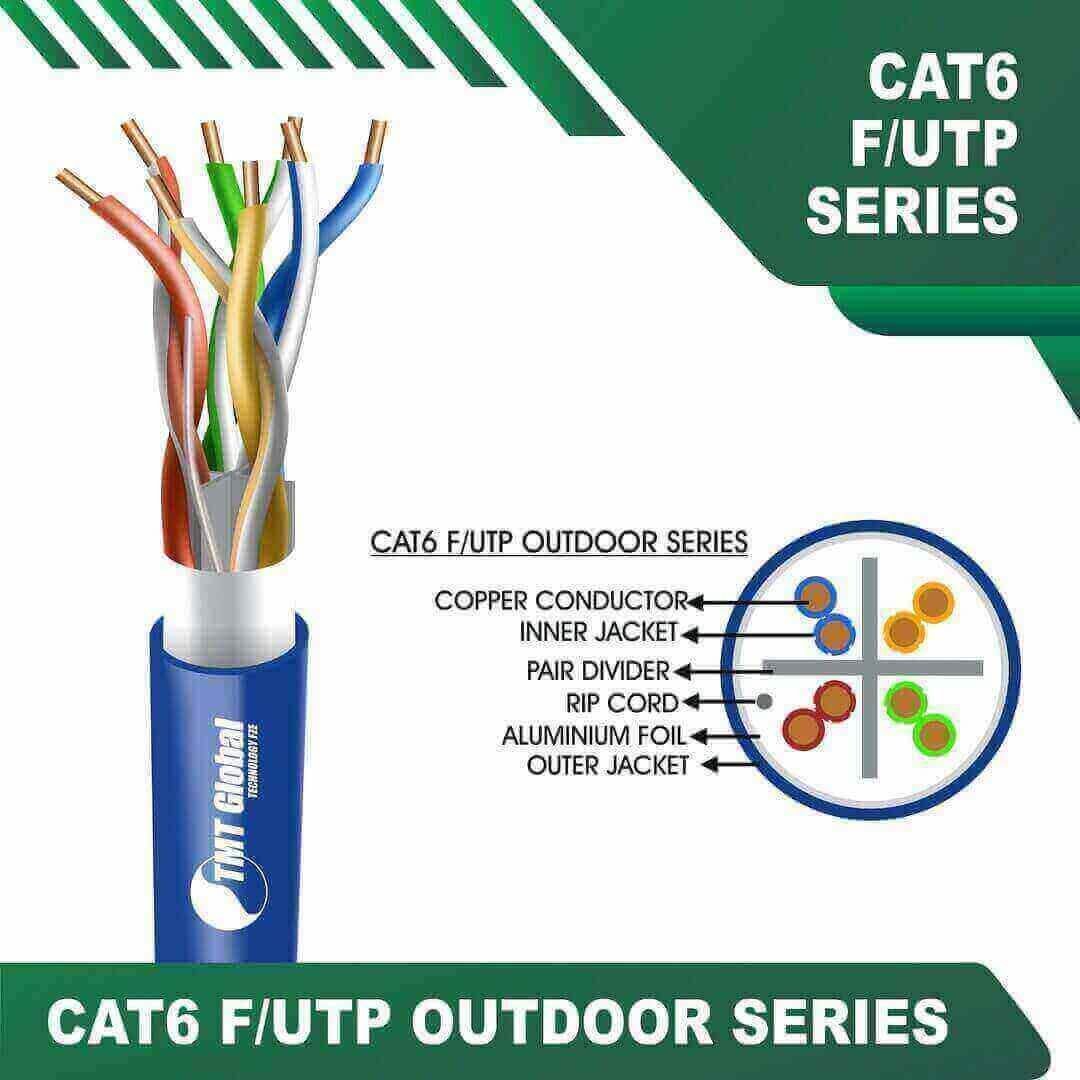

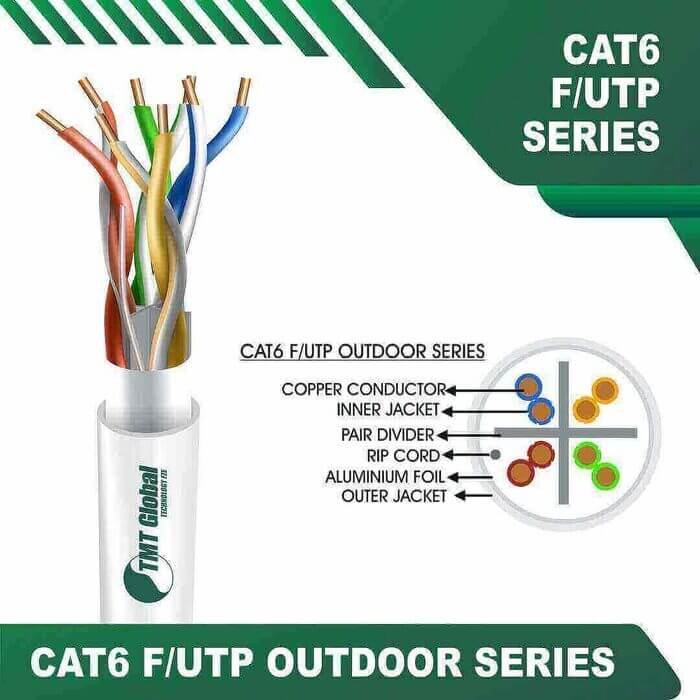

outdoor cat 6 cable 23awg 4 twisted pair F/UTP 305m

Rated 5.00 out of 5 based on 1 customer rating

د.إ300.00

Standards: ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -E)

General Specification:

• Conductor: TMT Copper
• Conductor Size: 23AWG
• No. Of Pairs: 4 twisted pairs
• Overall Coverage: Aluminum Foil
• Outer Jacket: PE
• Jacket Color: Blue/Black/Grey/Violet/Orange
• Packing: 305m / Wooden/ Plastic Reel
• Model No: TMT-4028
• Item Code: 6X236MOK

0 People watching this product now!

TMT GLOBAL Cat6 23awg 4 twisted pair F-UTP Outdoor Cable 305m

TMT Global outdoor cat 6 cable 23awg 4 twisted pair F/UTP 305m are Manufactured Tested and Complied with IEC 60332-1-2 EN 50173-1:2011 ISO/IEC11801:2011(Ed. 2.2) ANSI/TIA/EIA-568.2-D IEC61935-2:2010(Ed.3.0) EN 50173-2:2007 including Amendment A1:2010 Requirements for Patch Cord Assemblies and Provide High Performance levels for structured cabling systems.

TMT GLOBAL Cat6 23AWG 4 Twisted Pair F-UTP Data Cable (305m) is designed for high-speed data transmission, ensuring reliable network performance for both home and office environments. Featuring four twisted pairs and F-UTP shielding, this cable minimizes interference and provides stable connectivity for your devices. With a length of 305 meters, it is perfect for large installations, offering durability, flexibility, and consistent signal quality.

APPLICATION

10BASE-T, 100BASE-TX Fast Ethernet,
1000BASE-T (IEEE802.3
100VG-AnyLAN (IEEE802.12)
550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE)

PHYSICAL AND MECHANICAL PROPERTIES
Conductor Resistance: ≤5Ω – ≤20Ω
Insulation Resistance: ≥10MΩ
Characteristic Impedance: 100 ― 6 Ohm @ 1-250MHz -1-500 MHz
Contact Resistance: 20 m Ohm max
Resistance Unbalance: 2% max
Dielectric strength: 1000 volts/1 minute min rms
Cable to Plug Tensile Strength: 9 Kgf (90N) min
Durability: 750
Temperature Operating Range: -25°C to 70°C
Country Of Origin: Made in UAE
By Fahad Cables Industry FZE
