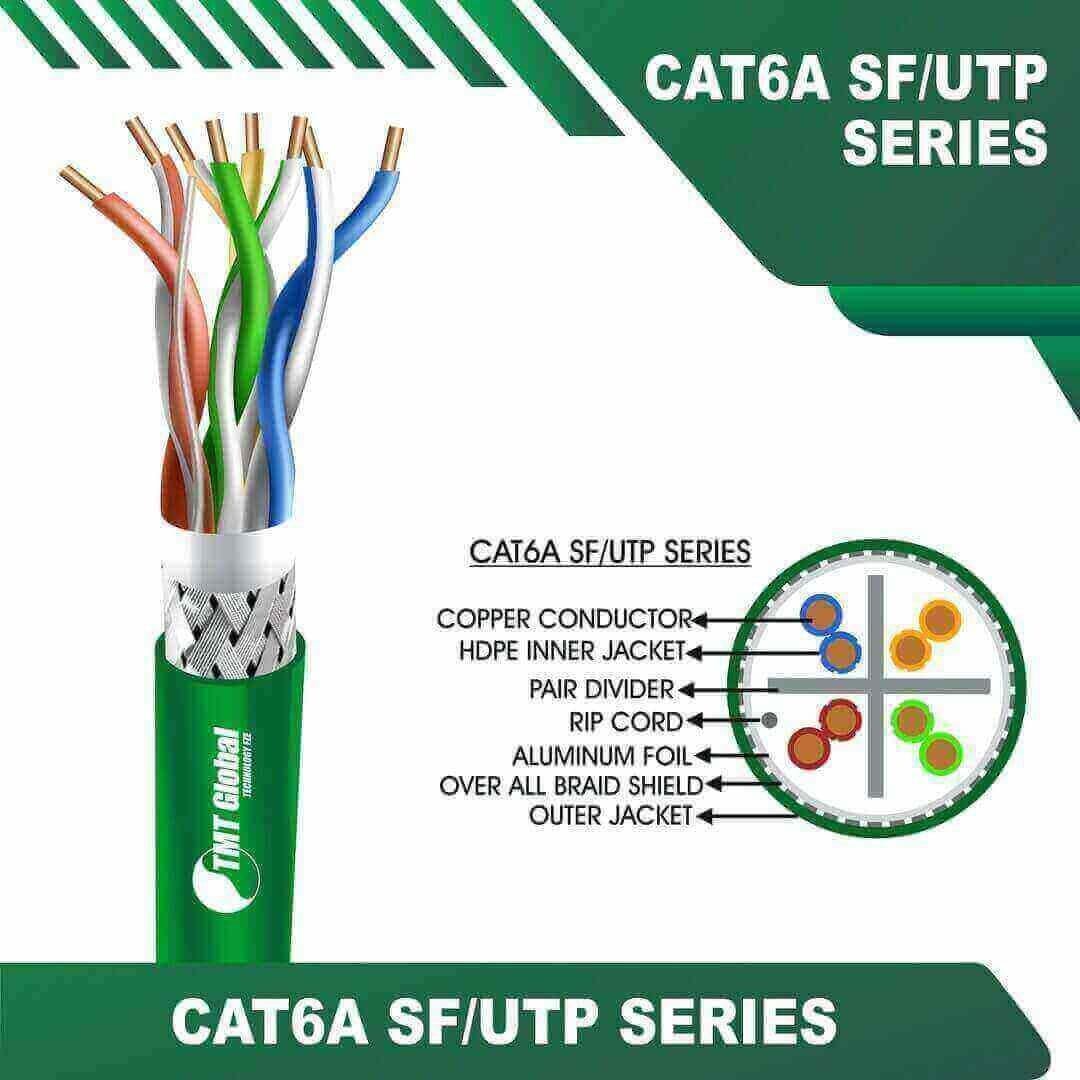

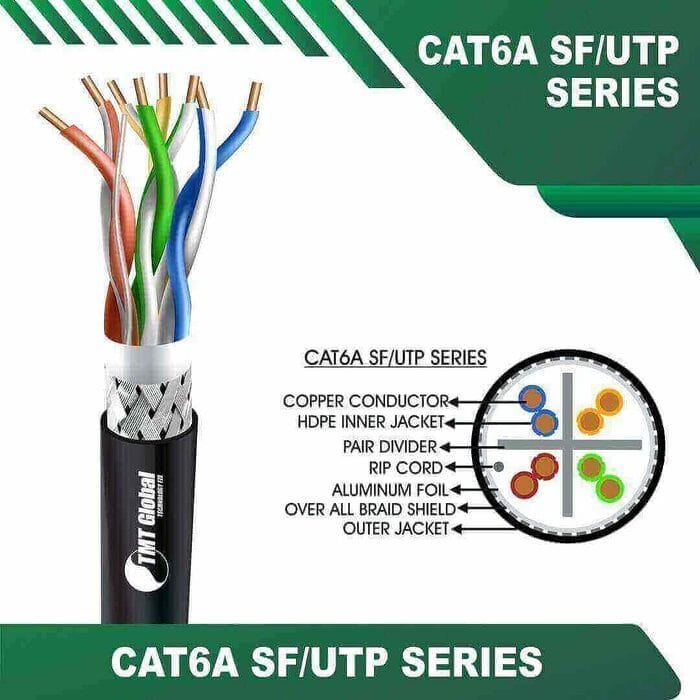

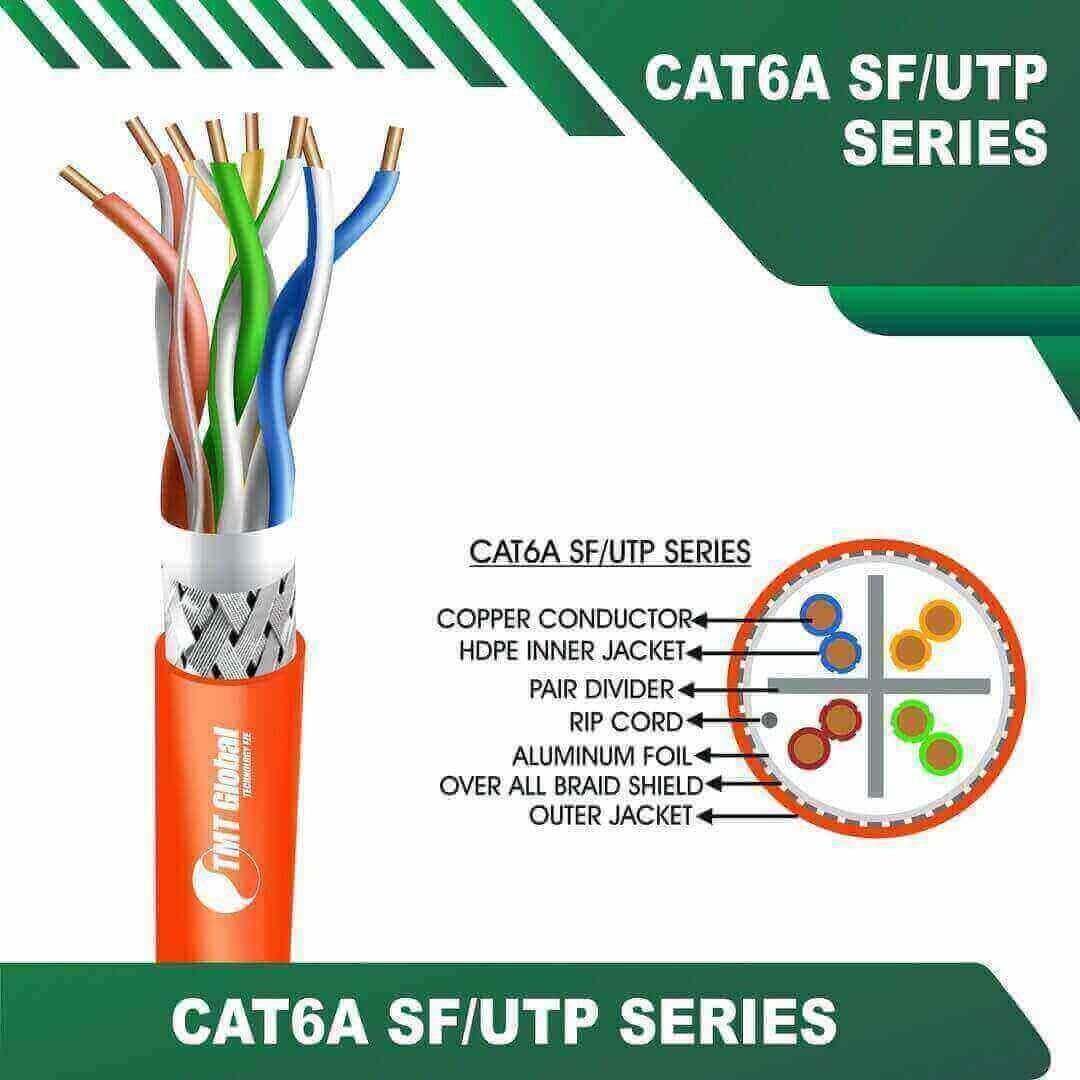

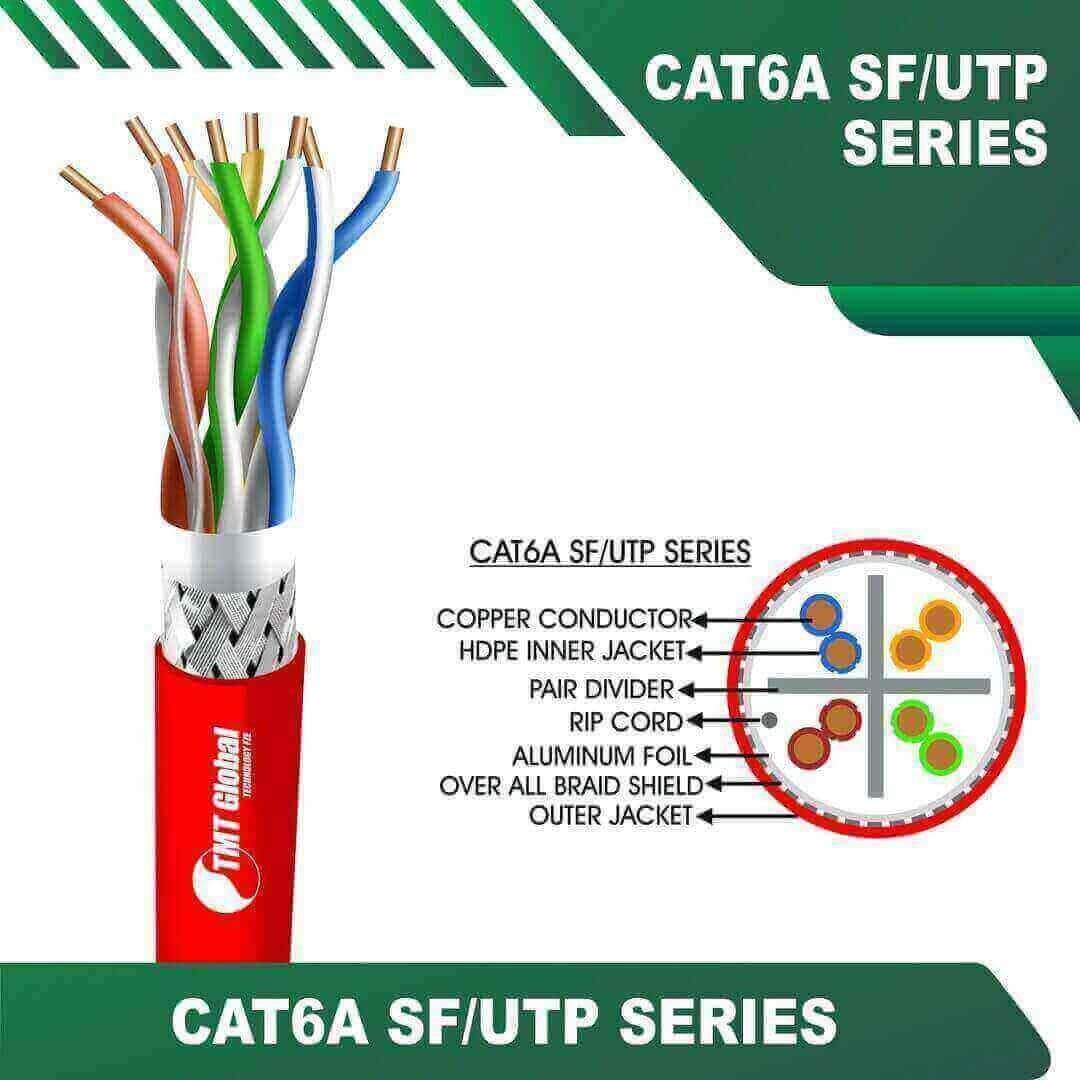

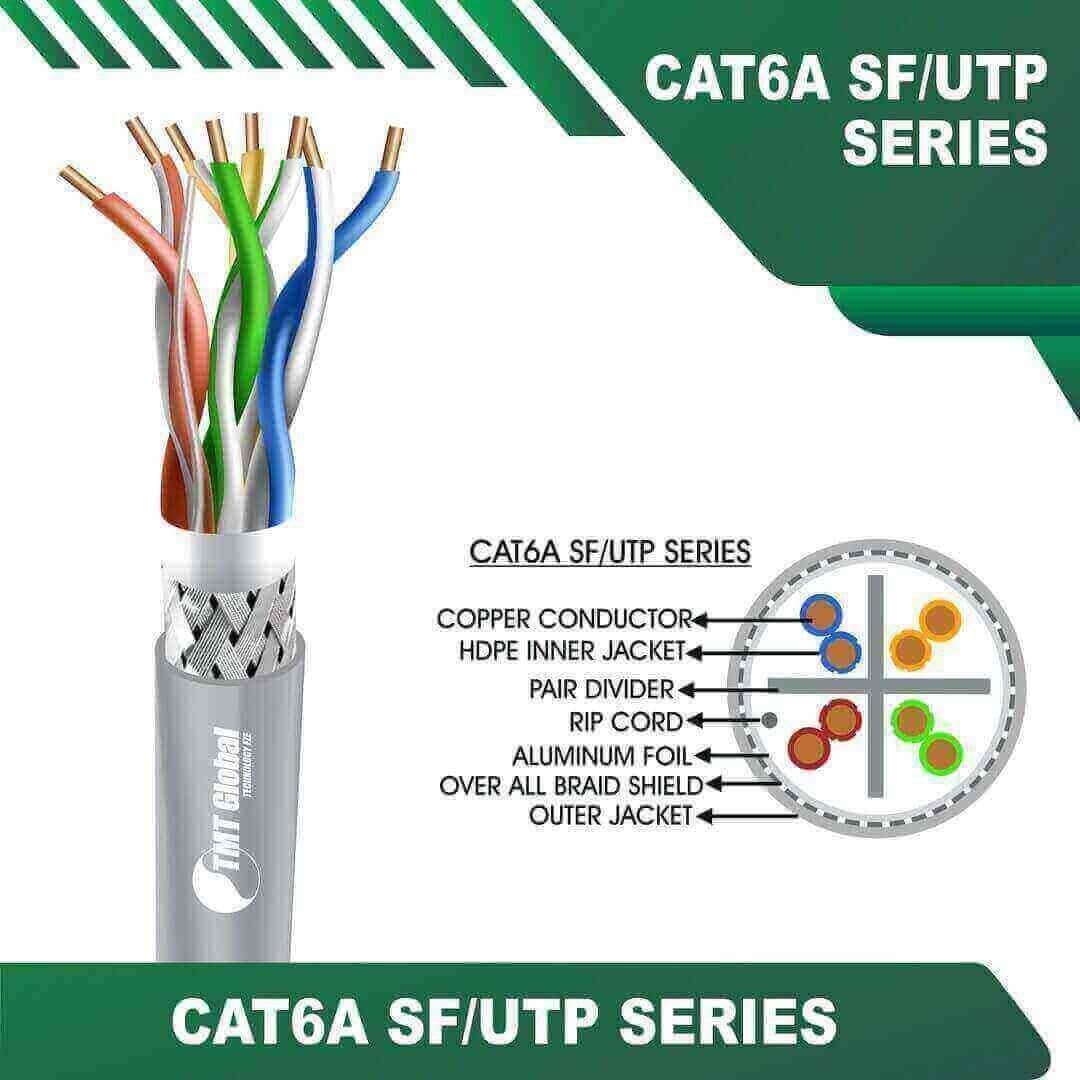

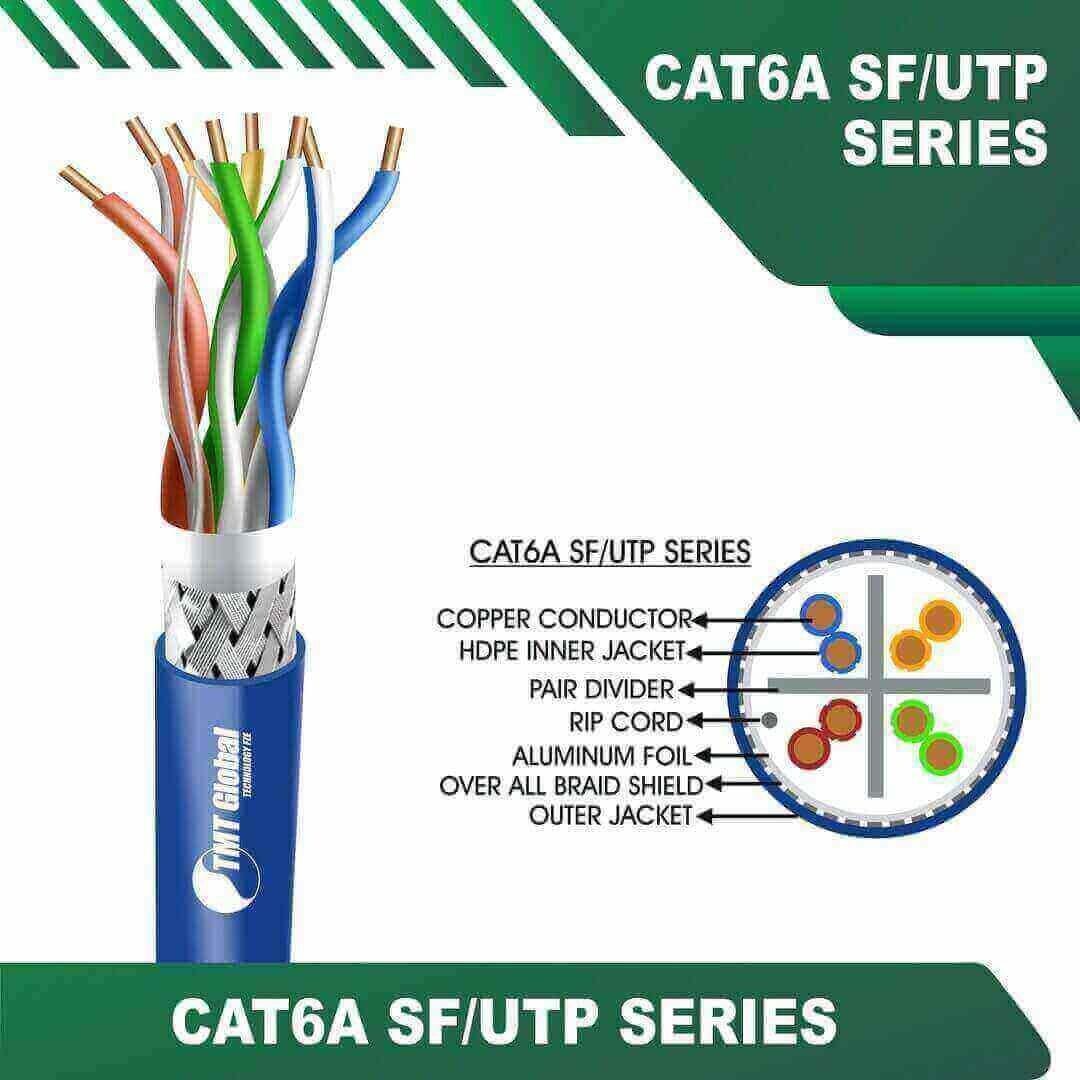

SF/UTP LAN Cable 305m cat6a 23awg 4 twisted pair

tmt uae cat6a 23awg 4 twisted pair SF-UTP LAN Cable 305m

TMT Global SF/UTP LAN Cable 305m cat6a 23awg 4 twisted pair 4 twisted pair SF-UTP LAN Cable 305m  Network Cable 305m are Manufactured Tested and Complied with ANSI/TIA/568.2-D CENELEC EN 50288-5IEC 61156-5 (ISO/IEC-11801 Class -E). cat6a 23awg 4 twisted pair SF-UTP LAN Cable 305m aims to provide the best quality products r Structured Cabling Systems Copper And Fiber Optics Range Access Control Systems Gate automation Lighting Control Systems Pir Motion Sensors UHF Long Range Readers Automatic Parking

PHYSICAL AND MECHANICAL PROPERTIES

Basic Conductor: 23AWG Bare Copper
Insulation: HDPE
Number of insulated conductors: 8 twisted in 4 pairs
Color Code of Pairs: Blue x White/Blue, Orange x White/Orange, Green x White/Green, Brown x White/Brown
Outer Jacket: PVC
Standard Jacket Color: Black /Grey/Blue/Orange/ Green/White/Aqua/ Yellows/Violet/Red
Standard Surface Marking: Includes TMT Global P/N, cable description, Meter mark and Model Number
Pulling force: 100 N MAX.
Short Term Bend Radius: 6xOD (Mm)
Storage Temperature: -20 To +80C
Temperature operating range: -20 to +60C
Installation temperature range: 0 to +50C
Flame Test: IEC 60332-1

ELECTRICAL SPECIFICATIONS

Characteristic Impedance: 100―6 Ohm @ 1-100 MHz
DC Resistance: 93 Ohm/Km max.
Resistance unbalance: 2% max.
Mutual Capacitance: 5.6 nF/100m Max. @ 1 KHz
Cap. Unbalance (wire to ground): 1500 pF/Km max. @ 1 KHz.
Voltage rating: 72 Vdc max.
Dielectric strength: 1500 Volts/1 minute min rms
Velocity of Propagation (NVP): 67-69%
Insulation Resistance: 5000 MOhm•m min. @ 500 Vdc
Coupling attenuation: IEC 61156-5 TYPE III
